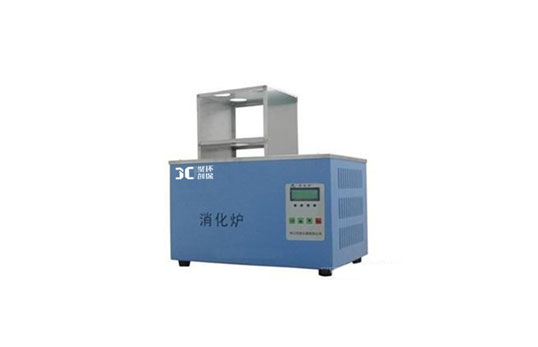

1. Product introduction

JC-XH-04C/08C/20C digital display digester is also called shunt digital display digester. It adopts well-type electric heating method, so that the sample can be heated in the well-type electric heating furnace to obtain better thermal effect and improve the digestion speed. The harmful gases such as SO2 escaped from the digestion pipe are discharged into the sewer from the water through the sewage pipe through the suction pump, effectively inhibiting the escape of harmful gases. The digestion furnace adopts intelligent temperature meter numerical control electric heating furnace temperature, and directly displays the temperature value. Equipped with stainless steel sewage cover, it is easy to use and adopts tetrafluoroethylene sealing ring, which does not need to be replaced.

2. Product parameters

1. Temperature control range: room temperature～600℃

2. Heating method: infrared heating

3. Heat conduction method: air conduction

4. Measurement range: 0.1mgN～200mgN (milligram nitrogen)

5. Determination quantity: measure multiple at one time; (4 holes, 8 holes, 20 holes,)

6. Digestion time: 60-90 minutes/batch (depending on the sample size)

7. Digestive tube capacity: 300ml

8. Power supply: AC220 (V) 50Hz

9. Power: 1000W/1500W/2500W

3. Product Features

1. The chassis of the whole machine is made of customized plastic-sprayed steel plate, and the work surface is made of stainless steel.

2. It has good corrosion resistance and beautiful color.

3. Double-layer shell design, air insulation layer and aluminum silicate insulation layer, double insulation effect.

4. The whole machine has multiple protections against overvoltage, overcurrent and overheating.

5. The whole machine is small and beautiful, easy to operate, convenient and fast to use.
