Sulfide acid blow.
Sulfide Acidizing Air Blowing Instrument
Sulfide Acidizing Air Blowing Instrument

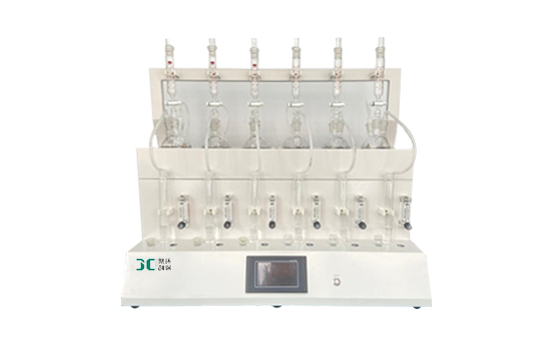

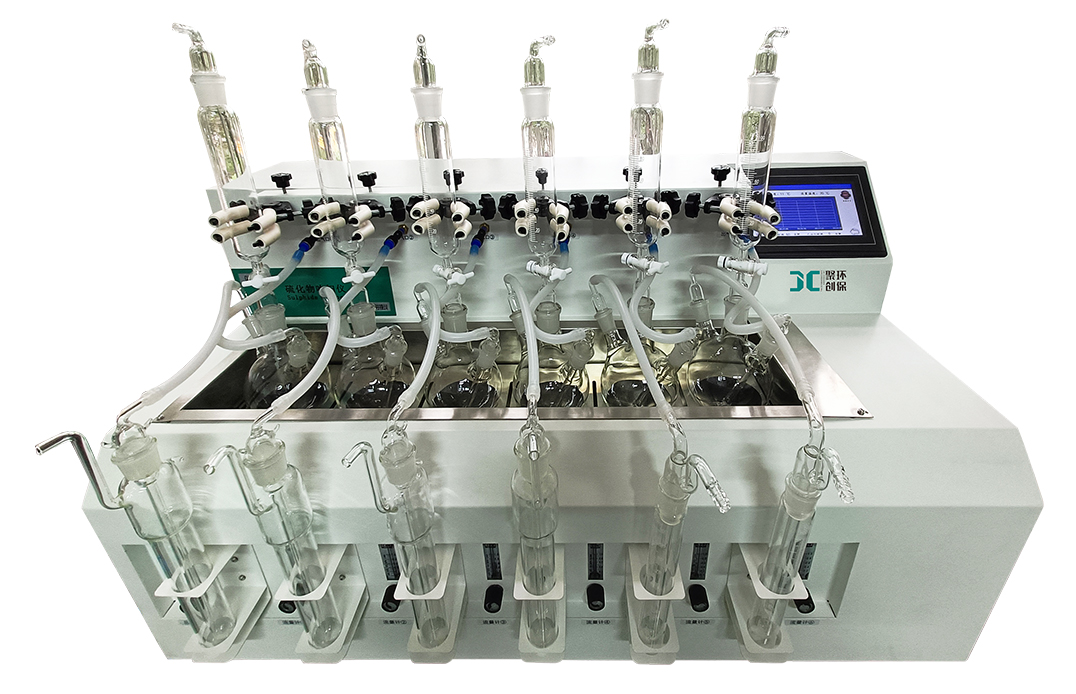

JC-GGC600Z Intelligent Sulfide Acidizing Air Blowing Instrument
  • Product name:JC-GGC600Z Intelligent Sulfide Acidizing Air Blowing Instrument
  • Order number:
  • Model:JC-GGC600Z
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    JC-GGC600Z intelligent sulfide acidification blower is customized by our unit according to " HJ1226-2021 Determination of Sulfide in Water Quality-Methylene Blue Spectrophotometry" and "HJ/T60-2000 Determination of Sulfide in Water Quality by Iodometry" A pretreatment instrument specially used to detect sulfide in water.


    2. Product parameters


    model

    JC-GGC600Z

    Number of samples

    6-channel design, can process 1-6 samples at one time

    Sample Reaction Vial Specifications

    500ml three-neck reaction bottle

    heating method

    Automatic temperature control constant temperature water bath

    sink function

    Automatic water inlet, automatic drainage

    heating power

    2000W, with leakage protection function

    Temperature control range

    Room temperature —99.9℃

    Temperature control accuracy

    The temperature difference between the actual water temperature and the design water temperature is ≤±1℃


    3. Product Features


    1. The whole machine adopts a parallel layout, which is convenient and intuitive to operate.
    2. The appearance of the instrument is made of corrosion-resistant material, which has good chemical reaction stability and thermal stability, and has a long service life.
    3. It adopts constant temperature water bath heating method and PID temperature control program.
    4. Automatic water level control, automatic water replenishment, automatic alarm for water shortage.
    5. The host is equipped with a special interface for convenient external nitrogen source, and the system is equipped with an overpressure protection system; the nitrogen flow of each sample is independently controlled, and the flow rate control range should be 50-500ml/min; Nitrogen can be automatically cut off after acidification is completed, saving nitrogen to protect the sample.
    6. The hydrochloric acid inlet, gas inlet and outlet are integrated and independent of each other, and the operations do not interfere with each other. No lift bracket required.
    7. Add acid vertically. The acid adding unit and the reaction bottle are connected vertically with a grinding mouth; the adjustment knob of the acid adding unit is made of polytetrafluoroethylene to prevent the corrosion of acid and alkali liquids.
