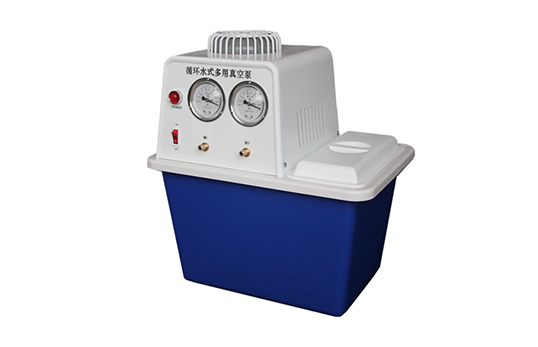

JC-SHZ-III multi-purpose vacuum pump for circulating water
  • Product name:JC-SHZ-III multi-purpose vacuum pump for circulating water
  • Order number:
  • Model:JC-SHZ-III
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    The circulating water vacuum pump uses circulating water as the working fluid, and uses the negative pressure principle formed by the jet to operate, providing vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, filtration, decompression, degassing and other processes. According to the characteristics of small laboratory area, it is made into a one-time molding shell, which has the advantages of small size, light weight and beautiful appearance. Has now developed a double-meter double-tap, four-meter and four-tap multi-purpose vacuum pump with the same double sides. It is especially suitable for laboratories in universities, research institutes, chemical, food, agricultural engineering and other industries.


    2. Product parameters


    Power (W)

    180W

    Working power (V/HZ)

    220/50V/HZ

    flow

    60L/min

    Water tank material

    Anticorrosion

    Air volume per head

    10L/min

    Number of suction heads

    2

    Storage tank volume

    15L

    security function

    Backflow prevention valve

    L×W×H(mm)

    400×280×420


    3. Product Features


    1. This machine adopts double taps, which can be used individually or in parallel with two vacuum gauges.
    2. The newly improved anti-corrosion four-tap can be used alone or in parallel with four vacuum gauges.
    3. The main engine is made of stainless steel movement and anti-corrosion material movement.
    4. Corrosion-resistant, non-polluting, low noise, vacuum regulating valve can also be installed according to user needs.
    5. Multiple students can conduct chemical experiments at the same time, reducing the experimental space.
