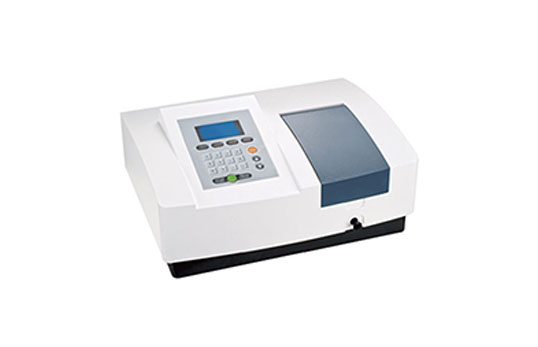

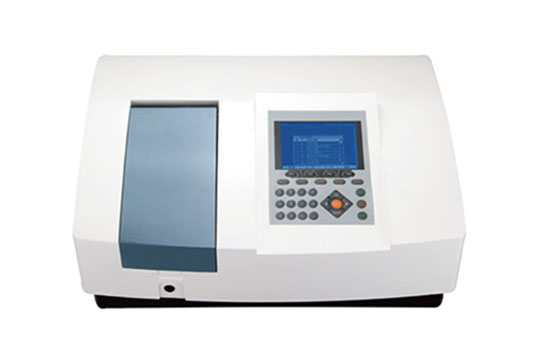

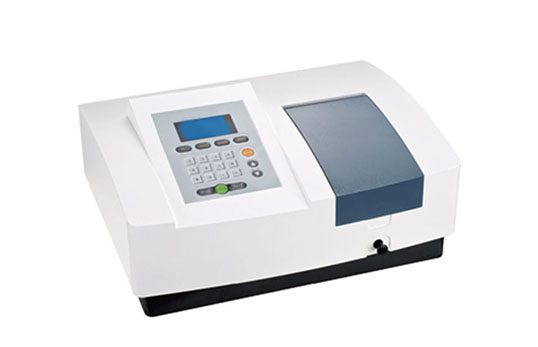

Product name：UV1900 Double Beam Scanning UV-Vis Spectrophotometer -
Order number： -
Model：UV1900 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
1. Double beam photometric system, combined with advanced circuit measurement and control system, make the instrument have high stability and extremely low noise.
2. The newly designed excellent optical system and high-performance holographic blazed grating ensure the low stray light of the instrument, so that the instrument can work stably at all wavelengths with four decimal places of absorbance value (two decimal places of transmittance value).
3. Fully automatic control system and advanced design concept ensure high reliability and stability of the instrument.
4. The design of the sample chamber with detachable structure makes it easy to replace different accessories to meet different analysis needs.
5. The spacious open light source room design makes the replacement of the light source more convenient.
6. Imported components are selected for key parts to ensure high reliability of instrument performance.
7. The Chinese and English operating software developed under the windows environment provides a wealth of unique analysis functions.
2. Product parameters
technical parameter
UV1900
wavelength range
190-1100nm
Spectral bandwidth
2nm
wavelength accuracy
±0.1nm (at 656.1nm), ±0.3nm full area
wavelength repeatability
≤0.1nm
Photometric accuracy
±0.002A(0-0.5A), ±0.004A(0.5-1A), ±0.2%T(0-100%)
Photometric repeatability
±0.001A(0-0.5A), ±0.002A(0.5-1A), ≤0.15%T(0-100%)
Stray light
≤0.02%T
stability
±0.0004A (at 500nm)
Baseline flatness
±0.0004A
Way of working
T,A,C,E
Photometric range
0-200%T,-4-4A
data output
USB interface
printout
parallel port
display system
320×240-bit high-brightness, large-screen LCD
light source
Imported long-life tungsten lamp, deuterium lamp
Detector
Imported silicon photodiode
weight
25kg
3. Product Features
1. Photometric measurement: It can measure transmittance and absorbance at 1~6 wavelengths at the same time.
2. Spectral measurement: scan the spectrum of transmittance, absorbance and energy in the wavelength range, and can perform various data processing such as peak and valley detection, derivative calculation, spectrum calculation, etc.
3. Quantitative measurement: single-wavelength, dual-wavelength, three-wavelength and multi-wavelength measurement of 1~9 point working curve (1~4 times) regression.
4. Kinetic measurement: time scanning of transmittance and absorbance at any wavelength set and various data operations can be performed.
5. Data output: data files and parameter files can be accessed, and the measurement results are output in standard and general data file formats.
