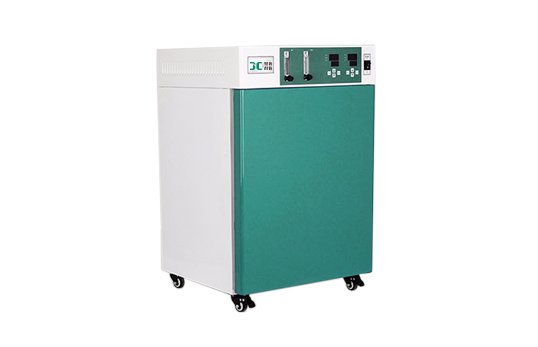

Product name锛欽C-CHP-80S/160S/240S Proportioning Water Jacketed Carbon Dioxide Incubator -
Order number锛 -
Model锛欽C-CHP-80S/160S/240S -
Stock status锛 -
Logistics锛欶OB銆丗AS銆丆IF銆丆FI銆丏ES
- Product Introduction
-
1. Product introduction
Carbon dioxide incubator (CO2 incubator) is an advanced instrument for fine, group, and fine cultivation, and is widely used in the research of agricultural science and fine science.
2. Product parameters
model
JC-CHP-80S
JC-CHP-160S
JC-CHP-240S
volume
80L
160L
240L
heating method
water jacket
way to control
intelligent control
Temperature control range
Room temperature+5锝60鈩
Temperature control accuracy (optional)
卤0.3鈩
temperature resolution
0.1鈩
CO2 range _
0-20%
CO 2 accuracy (optional)
0.1%
CO 2 uniformity (optional)
At 5%, 卤0.1%
CO 2 alarm
卤0.1鈩
CO recovery time
鈮Concentration value脳1.2min
Humidification method
natural evaporation
Working temperature
+5锝35鈩
power supply
~220V 50Hz
Studio size
500脳400脳400
500脳500脳650
6+00脳550脳750
Dimensions
550脳510脳840
650脳610脳990
750脳650脳1090
Load carrier (block) (standard)
2
3
3
3. Product features
1. Microcomputer intelligent controller (digital display or liquid crystal display) for carbon dioxide incubator (CO2 incubator), with temperature control, CO2 gas, door temperature, water level, UV lamp, timing control functions, and also has over-temperature, Water level, safety protection, alarm function.
2. The air inlet of the carbon dioxide incubator (CO2 incubator) is equipped with a filter. For particles with a diameter equal to 0.3um, the filtration efficiency is as high as 99.99, and it can effectively filter fine particles and dust particles in the CO2 gas.
3. The ultraviolet germicidal lamp is located on the back wall of the box, which can disinfect the inside of the box regularly, which can effectively kill the floating bacteria in the circulating air and the water vapor of the humidification tray in the box, thereby effectively preventing the pollution during cell culture.
4. The door of the carbon dioxide incubator (CO2 incubator) can heat the inner glass door, which can effectively prevent condensed water from the glass door and prevent the possibility of microbial pollution caused by the condensed water of the glass door.
5. The carbon dioxide incubator (CO2 incubator) adopts an antibacterial stainless steel liner, and the four corners arc in the cavity, which is convenient for cleaning and the shelf is adjustable.
6. Can be equipped with RS-485 interface to connect with computer (optional).
-
-
