PRODUCTS CENTER
-

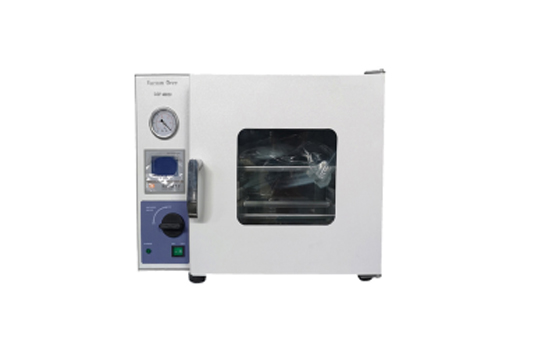

Product name锛欽C-DZK-6025/6050/6250 Desktop Vacuum Drying Ove -
Order number锛 -
Model锛欽C-DZK-6025/6050/6250 -
Stock status锛欴elivery according to contract -
Logistics锛歜y sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
DZK series vacuum drying oven adds vacuum conditions on the basis of high temperature drying, which greatly reduces the boiling point and vapor pressure, provides a dust-free, vortex-free drying process and a mild environment for the test and heating process, and also makes the solvent vapor Easy to collect, discharge or reuse. In addition, storage, heating, testing and drying are all carried out in an environment without oxygen or filled with inert gas, so the experimental samples are not easily oxidized. DZK series vacuum drying ovens are widely used in agricultural scientific research, environmental protection and other research fields, for powder drying, baking and disinfection and sterilization of various glass containers. Especially suitable for fast drying of heat-sensitive, oxidative decomposition and complex composition items.
2. Product parameters
Item JC-DZK-6025 JC-DZK-6050 JC-DZK-6090 JC-DZK-6250 Inner Chamber Size (mm) 300脳300脳270 415脳370脳340 450脳450脳450 700脳600脳600 Structure Type Benchtop Benchtop Benchtop Benchtop Partition Plates 1 2 2 3 Voltage 220V 220V 220V 380V Power (W) 500 1400 2400 5000 Chamber Material Stainless Steel Inner Chamber Stainless Steel Inner Chamber Stainless Steel Inner Chamber Stainless Steel Inner Chamber Vacuum Degree 锛133 Pa 锛133 Pa 锛133 Pa 锛133 Pa Temperature Control Range 50鈥200鈩 50鈥200鈩 50鈥250鈩 50鈥250鈩 Temperature Fluctuation 卤1鈩 卤1鈩 卤1鈩 卤1鈩
3. Product Features
1. The cuboid studio makes the effective volume reach large.
2. Double-layer tempered glass door, observe the objects in the studio at a glance.
3. One-time casting high temperature resistant silicone rubber door seal.
4. The lock-type elastic adjustment door lock ensures a good vacuum degree.
5. The studio adopts stainless steel plate.
6. Light touch interlocking double solenoid valve to achieve vacuum pumping and pressure relief.
7. With LED display, temperature correction, over-temperature alarm and other functions.
