- Product Introduction
- Details Page
-
1. Product introduction

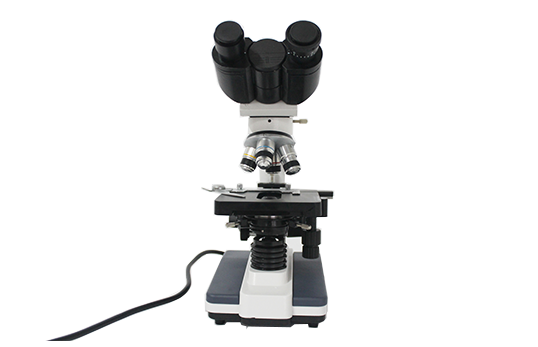

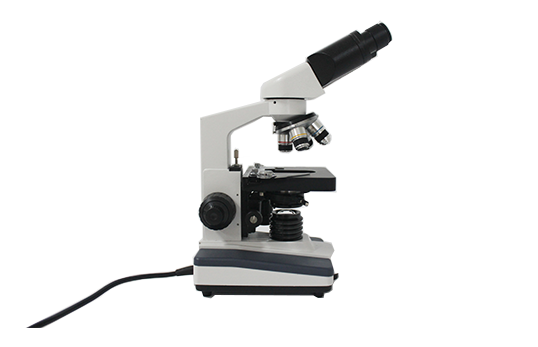

XSP series-2CA binocular microscope can be widely used in chemistry and other research work.
The microscopic magnification technique using optical principles is used to make specimens from the collected fine samples, and to perform microscopic magnification and observation.
It is mainly used to amplify tiny objects into instruments that can be seen by the naked eye.
This is a rationally designed, compact and lightweight biological microscope.
2. Product parameters
serial number
Product number
Binocular Biological Microscope XSP-2CA
1
Achromatic Objectives
4X/0.10NA, 10X/0.25NA, 40X/0.65NA,
100X/1.25NA (spring, oil) (magnification/numerical aperture)2

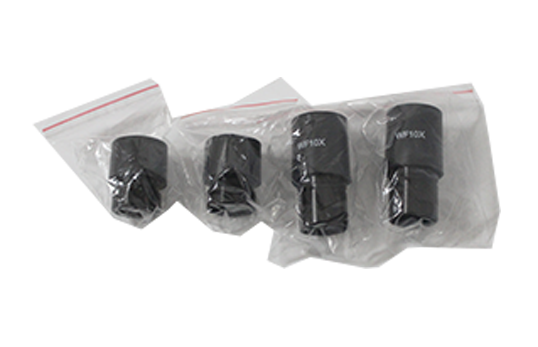

flat field eyepiece
10X/18(mm), 16X/11(mm) (magnification/field of view aperture)
3
observation head
360掳 rotatable, single cylinder 30掳 tilt
4
Auxiliary binoculars
1X
5
condenser
Abbe condenser with variable diaphragm and color filter, numerical aperture 1.25NA
6
total magnification
40X-1600X
7
Focus range
15mm (fretting grid value 0.002mm)
8
interpupillary distance
55-75mm
9
Mechanical barrel length
160mm
10
Tungsten halogen bulb
6V/20VA
11
light source
220V electric light source
12
Stage size
125*120mm (movement range 70*30mm, vernier grid value 0.1mm)
3. Product Features
1. The instrument is small in size, light in weight and easy to operate.
2. Complete functions, clear imaging and high cost performance.
-
