1. Product introduction

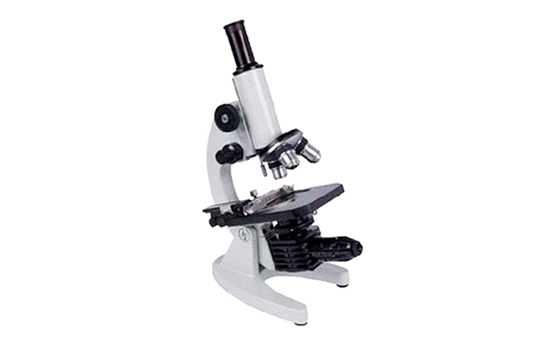

This biological microscope has a simple design, can be magnified to 40-1600 times, four-hole converter, can choose to magnify up to 640 times, a straight-tube biological microscope for students, easy to operate, easy to maintain, suitable for teaching and health institutions Experimental use: observe various biological specimens, such as various spores, roots, and stem cross-sections; pollen, insect heads, wings, feet, eggs, etc., as well as research and routine inspections in biology.

2. Product Features

Straight-tube student biological microscope , easy to operate and easy to maintain, can be used for teaching and experimental purposes in health colleges: observe various biological specimens, such as various spores, roots, and stem cross-sections; pollen, insect heads, wings , feet, eggs, etc., as well as research and routine tests in biomedicine. The straight and adjustable inclination eyepiece tube adapts to the operator's personality; the objective lens with a long working distance is used to avoid damage to the specimen and the lens; the independent focusing mechanism for coarse and fine movements makes focusing easy to master; the stage is equipped with The ruler can be moved vertically and horizontally, which is convenient for specimen observation; the instrument is compact in structure and beautiful in appearance.

3. Product parameters

1 . Mechanical barrel length: 160 mm
2. Objective lens:

3. eyepiece:

4. Total magnification:

5. Coarse focus range: 50 mm; fine focus range: 1.8 to 2.2 mm.

6. Workbench: 120mm x 110mm; with pressure reed

7. Moving ruler: vertical adjustment range: ≥ 25 mm; horizontal adjustment range: ≥ 50 mm;

Vernier grid value: 0.1 mm.

8. Condenser: Liftable condenser, variable light diaphragm

9. Lighting: plano-concave mirror or electric light source (single choice or all choices)

10. Dimensions: length, width and height: 180 × 130 × 320 mm
11. Weight: 2.4 Kg
