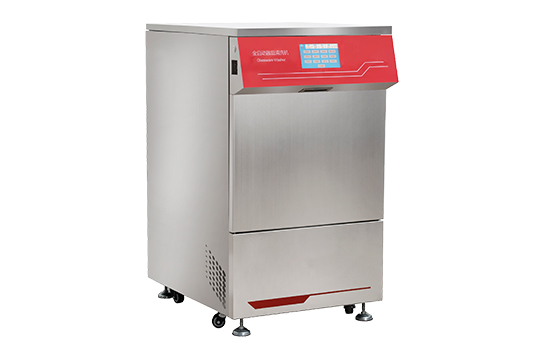

The laboratory bottle washing machine JC-XPJ-200A controls the high-pressure water to wash the articles 360 degrees in an all-round and multi angle by microcomputer, and controls the water temperature, washing time and washing times. It is equipped with special cleaning solution and neutralizer to clean, disinfect and dry the internal and external surface stains and various chemical residues of various Laboratory Glassware and circuit boards.

Professional Structural Design

1. The outer casing, cleaning pipelines, cleaning chamber, washing racks, etc. are all made of high-quality stainless steel (SUS304 or SUS316L) pipes and valves, complying with relevant standards.
2. The water and air docking between the washing racks and the inner wall of the cleaning chamber adopts an automatic sealing connection, minimizing water and pressure loss during the entire cleaning process and ensuring cleaning performance.
3. Independent parallel water supply design for each layer of washing racks ensures consistent cleaning results for double-layer racks, avoiding unbalanced water pressure and uneven cleanliness caused by single-top pipeline water supply.
4. Dual water inlet design, controlled by solenoid valves.
5. Independent drain pump with water seal design in the drainage pipeline to prevent backflow of waste water.
6. Anti-overflow design with overflow protection: excess water in the cleaning chamber will be automatically discharged and the program will stop running.
7. Integrated structure for independent installation; equipped with casters at the bottom for easy movement.
8. High-quality flame-retardant insulation boards and thermal insulation cotton reduce heat consumption during heating, shorten cleaning time and lower power consumption.
9. Upper and lower washing racks are interchangeable, improving utilization and reducing user operating costs.

User-Friendly Operating System

1. Color LCD screen with ergonomically inclined display for convenient operation and better user experience.
2. "Black Box" function with built-in data memory, recording the entire cleaning process; equipped with system self-diagnosis and fault alarm functions.
3. Parameters including cleaning temperature, time and detergent dosage are user-adjustable.
4. USB port and RS232 port for data export and storage (optional).
5. Mini printer for printing cleaning data (optional).
6. Online cleaning cleanliness monitoring function (optional).

Cleaning System

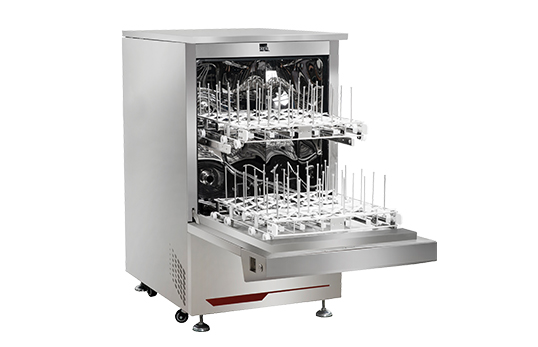

1. Top nozzles and fan-shaped cutouts on the cleaning columns enable 360° cleaning of the inner surfaces of utensils.
2. Rotary spray arms installed at both the top and bottom of the cleaning chamber; triple-layer rotary spray arms available, with optimally arranged nozzles to ensure full coverage without dead zones.
3. Water temperature can be heated up to 99°C, achieving intermediate disinfection level in compliance with EN ISO 15883.
4. Original imported water circulation pump, high temperature resistant and corrosion resistant, ensuring stable cleaning pressure.
5. Inlet water flow sensor to precisely control water inflow and guarantee cleaning performance.

Complete Preinstalled Cleaning Programs

1. Quick Cleaning: For water-soluble substances.
2. Standard Cleaning: For general water-soluble contaminants.
3. Enhanced Cleaning: For poorly water-soluble substances.
4. Custom Cleaning: For poorly water-soluble substances.
5. Inorganic Cleaning: For inorganic contaminants.
6. Organic Cleaning: For organic contaminants.
7. Plastic Ware Cleaning: For plastic utensils.
8. Glass Ware Cleaning: For lightly contaminated glassware with water-soluble residues.
9. Oil Cleaning: For general oil contamination.
10. Heavy Oil Cleaning: For heavily oil-contaminated utensils.
11. General Cleaning: For various contaminated utensils.
12. Rinsing Program: For light attachments such as dust.
13. Self-Cleaning Program: For internal chamber and pipeline cleaning of the machine.

Comprehensive Safety Protection System

1. Electronic safety door lock + mechanical interlock: automatically locked during operation to prevent accidental door opening and hot steam injury; door can only be opened after pausing or exiting the program.
2. Over-temperature protection for water heating system and water pump.
3. Overflow protection with leak detection device (drip tray) at the bottom.
4. Filter screen in the water tank to maintain cleaning water quality and protect utensils and internal components.
5. Polymer filter built into the inlet solenoid valve to prevent impurities from entering the cleaning pipeline.
6. Detergent low-level alarm to remind users to replenish detergent in time.
7. Electrical control system equipped with overload, short-circuit, over-current and leakage protection.
