PRODUCTS CENTER
-

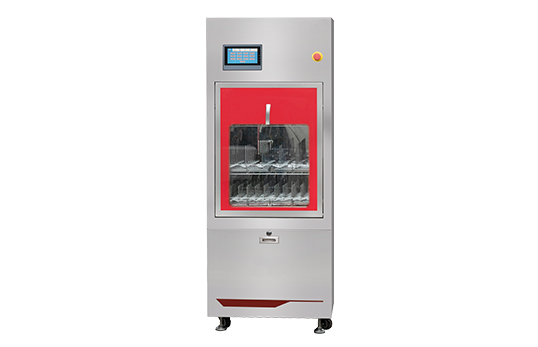

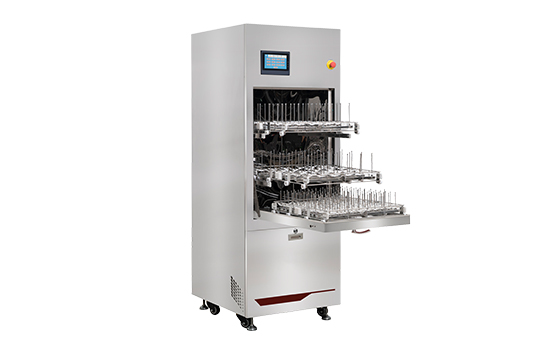

Product name锛歀aboratory Bottle Washer JC-XPJ-320 -
Order number锛歒H-1005 -
Model锛欽C-XPJ-320 -
Stock status锛 -
Logistics锛歋EA, AIR
- Product Introduction
-
Product introduction
Laboratory bottle washing machine is also called automatic vessel washing machine, vessel washing machine, laboratory washing machine, automatic bottle washing machine; It is one of the core products of Qingdao juchuang environmental protection equipment Co., Ltd. It is applicable to the cleaning and drying of injection bottles, test tubes, beakers, pipettes, triangular bottles, volumetric flasks and other utensils in various laboratories such as scientific research institutes, environmental protection, water system, petrochemical system and power system.
ITEM JC-XPJ-320
effective capacity(L)
320
SIZE (W*D*H)mm
690*790*1950
inner size(W*D*H)mm
600*629*820
Voltage(V/Hz)
380/50-60
flow锛L/min锛
1000
(European imports)
water heating power (KW)
5/15
Power drying operation(KW)
3.6
High operating power(KW)
6.5/18Water consumption / circulation
(L)
15
noise(dBa)
<55
Inlet pressure锛Mpa锛
0.3-1.0
Product features
鈼 The TWINS cleaning and drying system for technology, enables in-place cleaning and drying of the vessels.
鈼 Materials: Cleaning chamber: SUS316L, Shell: SUS304
鈻 High cleanliness
1. Imported European circulation pump, with stable and reliable cleaning pressure;
2. Arrangement of cleaning positions based on fluid mechanics principles, ensuring the cleanliness of each item during cleaning;
3. Optimized flat-mouth type nozzle with rotating spray arm, ensuring 360掳 spray without any dead corners;
4. Inclined cutting edge on the side of the cleaning column to ensure 360掳 cleaning coverage of the inner wall of the vessel;
5. Adjustable height support frame to ensure effective cleaning of different-sized vessels;
6. Dual water temperature control to ensure the entire cleaning water temperature;
7. Cleaning solution can be set and automatically added;
鈻 Drying system
1. In-situ drying system
2. Built-in HEPA filter to ensure the cleanliness of the drying air;
3. Synchronous drying water circulation pipeline to avoid dampness in the pipeline and contamination of the cleaning system;
4. Dual temperature control to ensure the drying temperature;
鈻 Protection functions
1. Two-point electronic door lock to prevent unauthorized opening;
2. Dual temperature protection for water temperature and air temperature;
3. Automatic protection for the circulation pump in case of high temperature;
4. Power-off protection function;
5. Water seal design in the drainage pipeline to prevent backflow of sewage;
鈻 Cleaning procedures
1. Standard procedure: meets the cleaning requirements for general contaminated vessels;
2. Quick cleaning procedure: meets the cleaning requirements for lightly contaminated vessels;
3. Customized cleaning procedure: users can customize the combination of cleaning procedures according to different cleaning needs;
4. Self-cleaning cleaning procedure: can choose to perform cleaning and flushing of the circulation pipeline and possible remaining scale in the inner cavity at regular intervals;
5. Drying procedure: equipped with a high-performance drying system to quickly complete the drying and cleaning of various instruments;
6. Manual testing procedure: meets the requirements for users to take water samples for testing the cleaning cleanliness rate and self-check the operation status of each component of the equipment
