Product name锛欰utomatic Utensils Cleaning Machine JC-XPJ-120 -
Order number锛歒H-1002 -
Model锛欽C-XPJ-120 -
Stock status锛 -
Logistics锛歋EA, AIR
- Product Introduction
-
Product introduction:

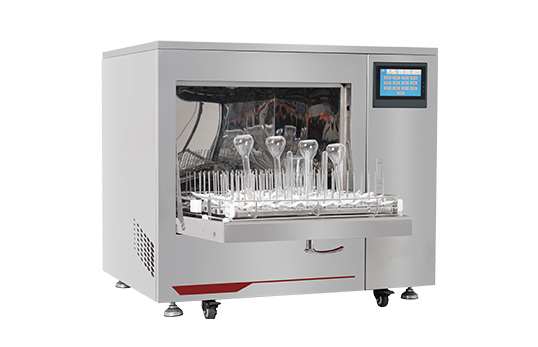

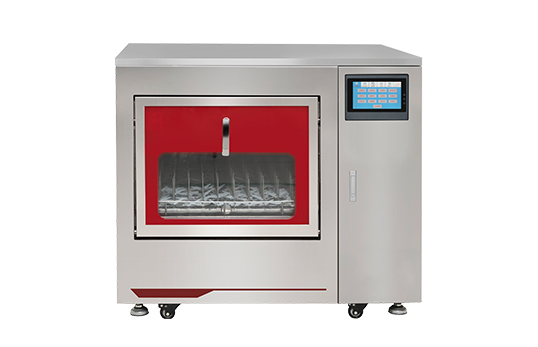

The automatic vessel cleaning machine jc-xpj-120 is applicable to the cleaning and drying of injection bottles, test tubes, beakers, pipettes, triangular bottles, volumetric flasks and other vessels in various laboratories such as scientific research institutes, environmental protection, water system, petrochemical system and power system.
ITEM
JC-XPJ-120
effetive volume (L)
120
SIZE(W*D*H)mm
980*740*870
Lumen size(W*D*H)mm
600*629*465
Voltage(V/Hz)
220/50-60
water flow锛圠/min锛
430
锛圗uropean imports锛
water heating power (KW)
5
Power drying operation(KW)
2.1
high work power(KW)
6
Water consumption / circulation(L)
15
noise(dBa)
<50
inlet pressure锛圡pa锛
0.3-1.0
Product features
The fully automatic dishwashing machine JC-XPJ-120 is equipped with the TWINS cleaning and drying system, enabling in-place cleaning and drying of dishes. The material of the cleaning chamber is SUS316L, and the material of the casing is SUS304.
High cleanliness
1. European imported high-efficiency circulating pump, with stable and reliable cleaning pressure;
2. Arrangement of cleaning positions based on fluid mechanics principles, ensuring the cleanliness of each item during cleaning;
3. Optimized flat-mouth type nozzle with rotating spray arm, ensuring 360掳 spray without any dead spots;
4. Inclined cutting edge on the side of the cleaning column to ensure 360掳 cleaning coverage of the inner wall of the dishes;
5. Adjustable height support frame to ensure effective cleaning of different-sized dishes;
6. Dual water temperature control to ensure the entire cleaning water temperature;
7. Cleaning solution can be set and automatically added;
Efficient drying
1. In-place drying system
2. Built-in HEPA high-efficiency filter to ensure the cleanliness of the drying air;
3. Synchronous drying water circulation pipeline to avoid dampness in the pipeline and contamination of the cleaning system;
4. Dual temperature control to ensure the drying temperature; Protection function
1. Two-point electronic door lock to prevent unauthorized opening;
2. Dual temperature protection for water temperature and air temperature;
3. Automatic protection for high-temperature circulation pump;
4. Power-off protection function;
5. Water seal design in the drainage pipeline to prevent backflow of sewage;
Cleaning procedures
1. Standard procedure: Suitable for cleaning general contaminated vessels;
2. Rapid cleaning procedure: Suitable for cleaning vessels with mild contamination;
3. Customized cleaning procedure: Users can customize the combination of cleaning procedures according to different cleaning requirements;
4. Self-cleaning cleaning procedure: Can choose to periodically clean the circulation pipeline and the possible remaining scale in the inner cavity;
5. Drying procedure: Equipped with a high-performance drying system, it can quickly complete the drying and cleaning of various instruments;
6. Manual testing procedure: Satisfies the need for users to take water samples for detection of cleaning cleanliness rate and self-check the operation status of each component of the equipment.
