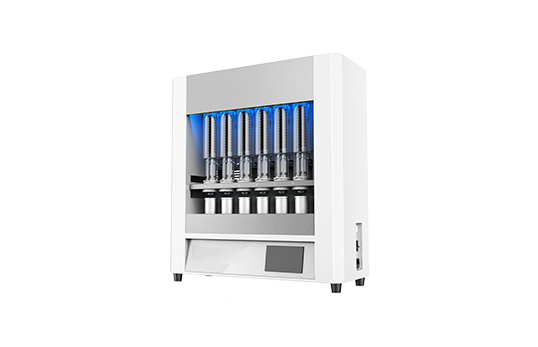

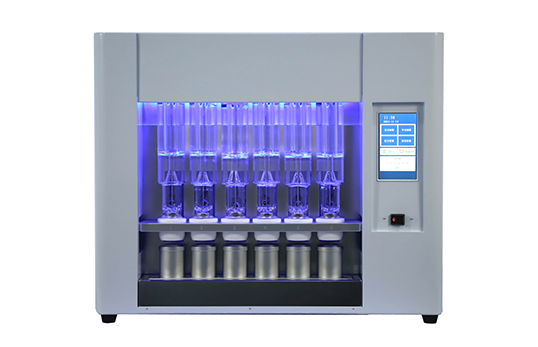

JC-ZF-06(S) Automatic Fat Measuring Instrument
  • Product name：JC-ZF-06(S) Automatic Fat Measuring Instrument
  • Order number：
  • Model：JC-ZF-06(S)
  • Stock status：Delivery according to contract
  • Logistics：by sea, by air, by express, etc.
Contact Now
Lumos@qdjchb.com
  • Product Introduction
  • Details Page

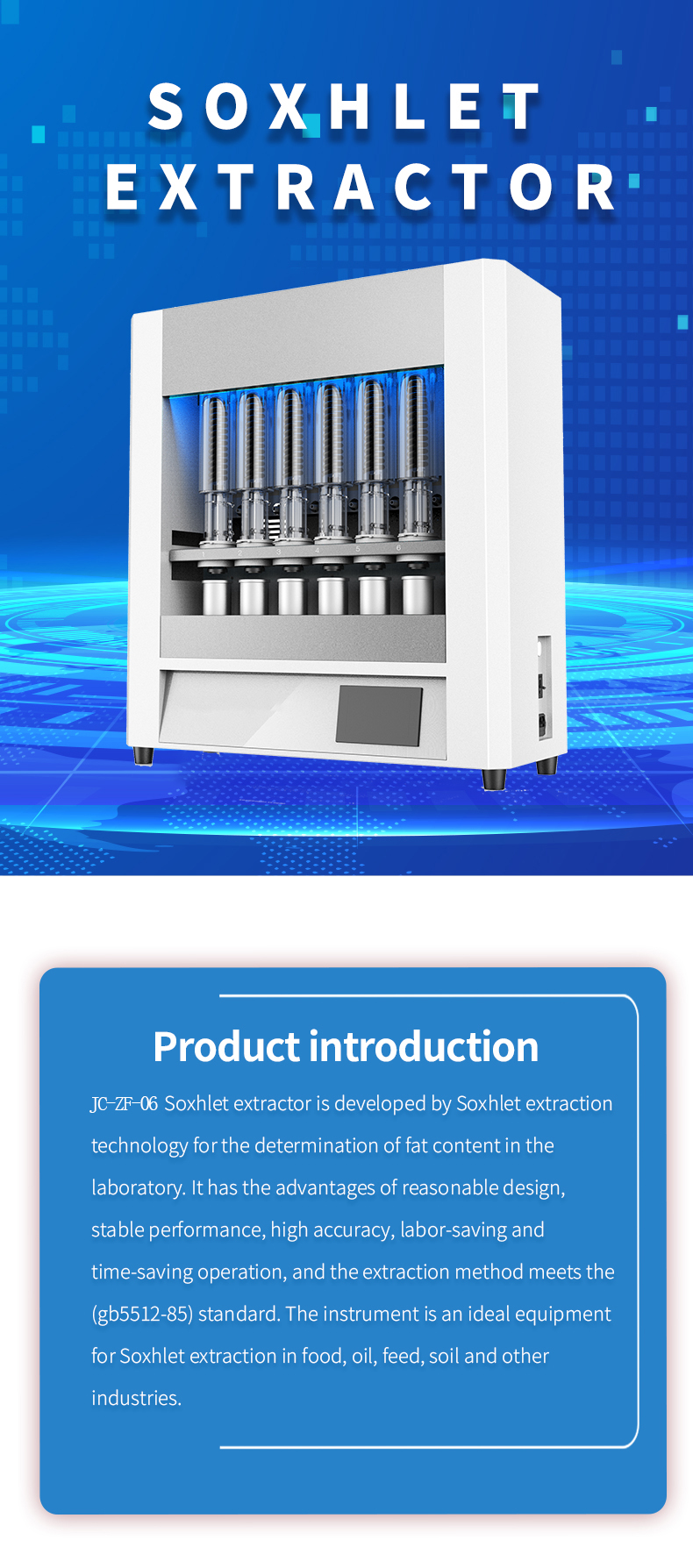

  • I. Product Introduction


    This instrument determines fat content in grains, cereals and foodstuffs by the gravimetric method based on the Soxhlet extraction principle.
    It complies with:
    • GB 5009.6-2016 National Food Safety Standard – Determination of Fat in Foods
    • GB/T 6433-2006 Determination of Crude Fat in Feeds
    • SN/T 0800.2-1999 Inspection Method for Crude Fat in Imported and Exported Grains and Feeds
    The product features fully automatic one‑button operation with simple operation, stable performance and high precision. It supports multiple automatic extraction modes including Soxhlet extraction, hot extraction, Soxhlet‑hot extraction, continuous flow extraction and standard hot extraction.

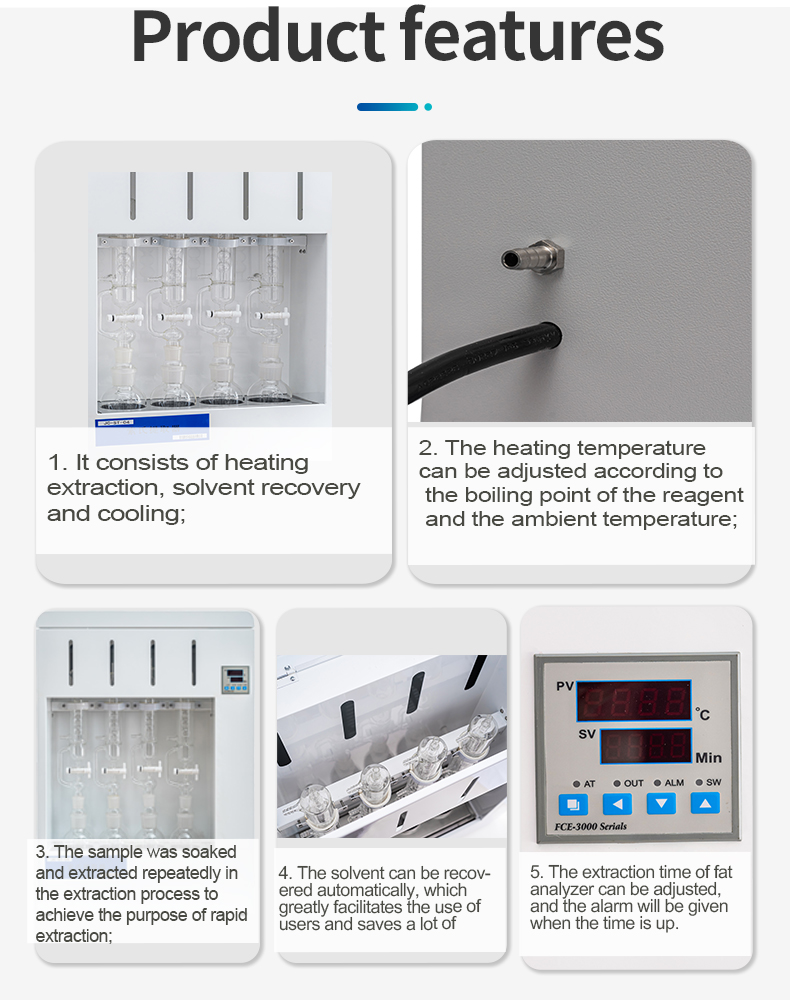

    II. Performance Features

    • 7-inch color touch screen with user‑friendly interface, convenient and easy to learn
    • Menu‑based program editing, intuitive, easy to operate and recyclable for repeated recall
    • Recipe management capable of storing 99 groups of different analysis programs
    • Up to 40 program segments for multi‑temperature, multi‑level or cyclic soaking, extraction and heating
    • One‑button completion of the whole process: compressing, heating, soaking, extracting, refluxing, valve opening and closing
    • Fully automatic lifting and pressing system with high automation, reliability and convenience
    • Solenoid valve supporting inching, timed and manual opening/closing for various soaking and extraction modes
    • Integrated metal bath heating block with wide temperature range and high temperature control accuracy
    • Automatic lifting function of the extraction filter cup holder ensures simultaneous immersion of samples in organic solvent, helping improve the consistency of test results
    • Professionally customized components compatible with various organic solvents, including petroleum ether, diethyl ether, dichloromethane, n‑hexane, alcohols, chloroform and benzene
    • Petroleum ether leakage alarm: the alarm activates and heating stops when petroleum ether leakage reaches a hazardous level in the working environment

    III. Technical Specifications

    1. Measuring range: 0.1% – 100%
    2. Temperature control range: RT+5℃ – 300℃
    3. Temperature control accuracy: ±1℃
    4. Number of test samples: 6 samples per run
    5. Sample weight: 0.5 g – 15 g
    6. Solvent cup volume: 150 mL
    7. Solvent recovery rate: ≥ 85%
    8. Control screen: 7-inch
    9. Solvent reflux plug: automatic electromagnetic opening/closing
    10. Extractor lifting system: automatic lifting
    11. Heating power: 1500 W
    12. Voltage: 220 V ±10% / 50 Hz

    IV. Standard Configuration

    • Main unit: 1 set
    • Aluminum alloy solvent cups: 6 pcs
    • Sample baskets: 6 pcs
    • Paper rolling rod: 1 pc
    • Power cord: 1 pc
    • Cooling water hoses: 2 pcs
