1. Product introduction

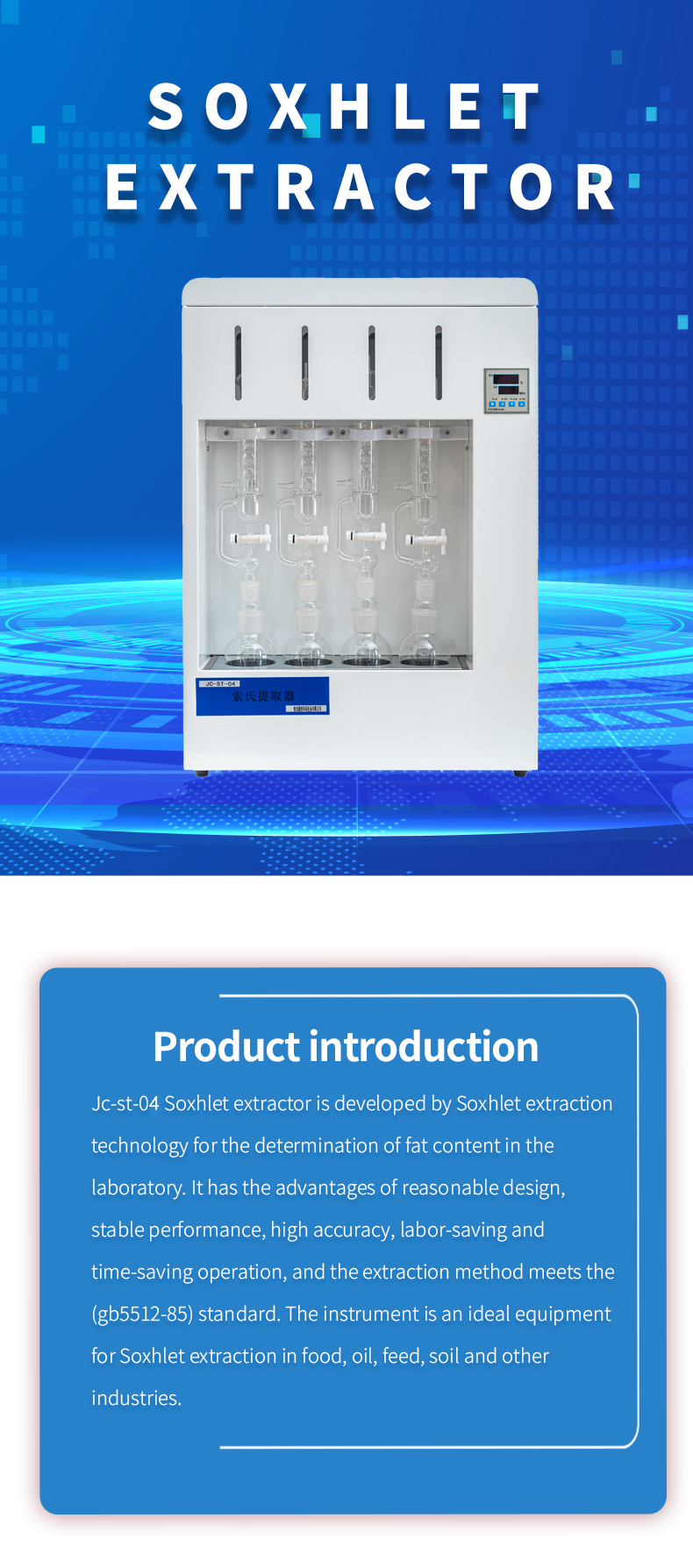

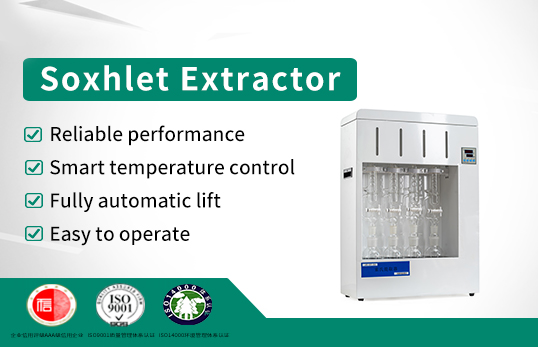

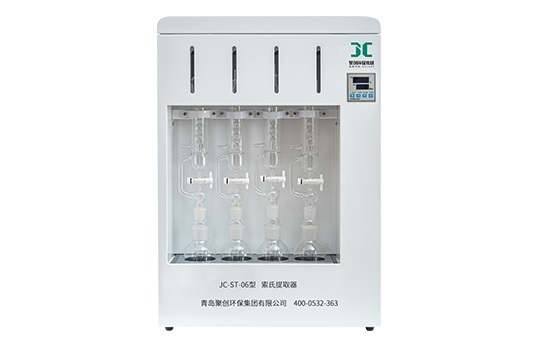

JC-ST-04 Soxhlet extractor is an equipment developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation, and the extraction method conforms to (GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

2. Product parameters

1. Product model: JC-ST-04
2. Number of extracted samples per batch: 4;
3. Extraction bottle volume: 250ml/piece;
4. Extraction sample volume: 0.5-20g/piece;
5. Controlled Temperature range: room temperature +5℃~100℃
6. Power supply voltage: 220V+10V frequency 50Hz;
7. Electric heating power: 500W;
8. Controller: LCD display
9. Temperature control accuracy: ±0.3℃
10. Heating time: About 10 minutes
11. Recovery system: automatic
12. Solvent recovery rate: ≥80%
13. Dimensions: 560*230*790mm;
14. Weight of fat measuring instrument: 21kg

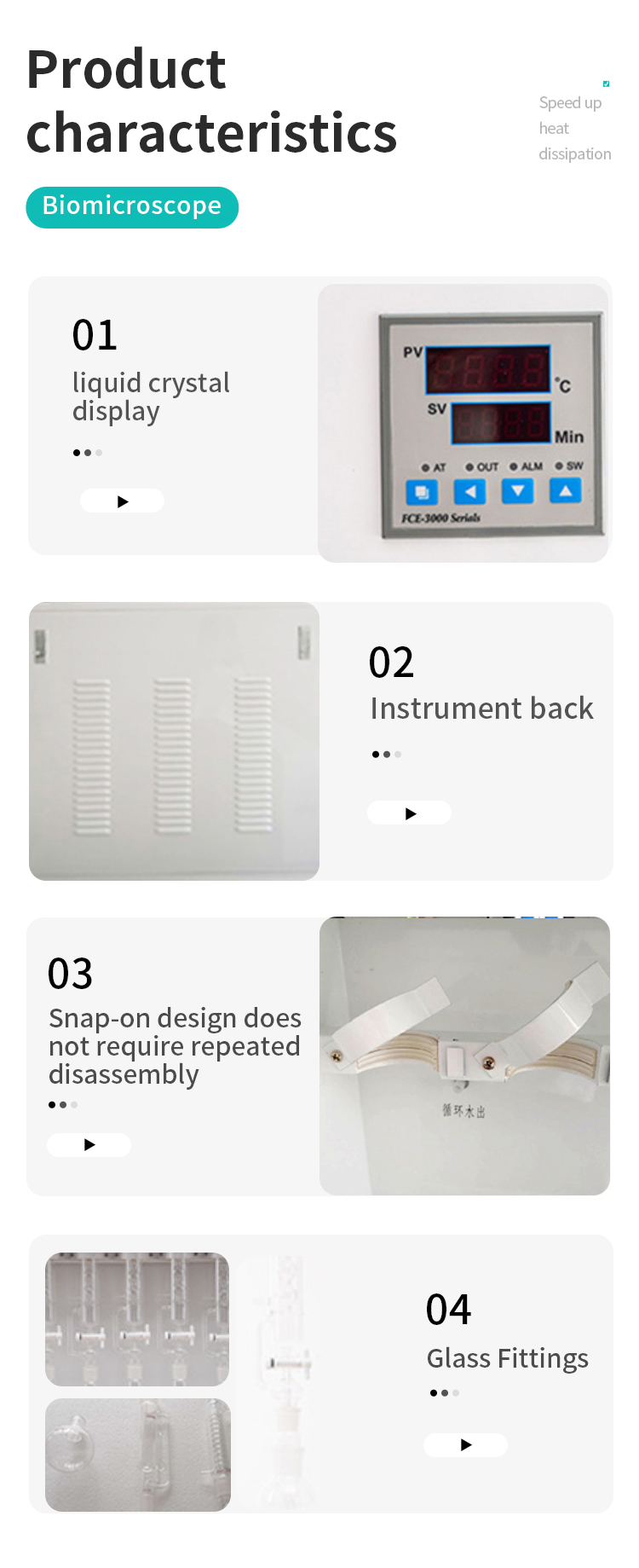

3. Product features

1. Heating extraction, solvent recovery
2. The heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature during operation of the fat analyzer;

3. The sample is repeatedly soaked and extracted during the extraction process, so as to achieve the purpose of rapid extraction;
4. It can be The solvent is automatically recovered, which greatly facilitates the use of users and saves a lot of time;
5. The extraction time of the fat analyzer can be adjusted, and the alarm will be alarmed when it arrives.
