Muffle furnace

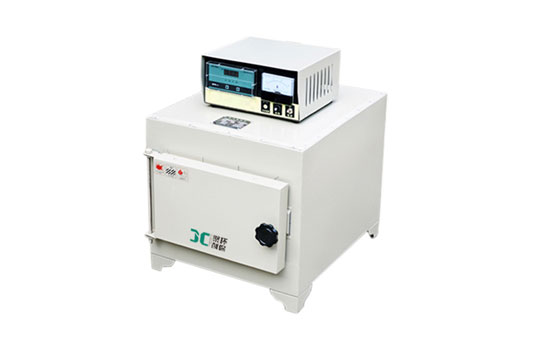

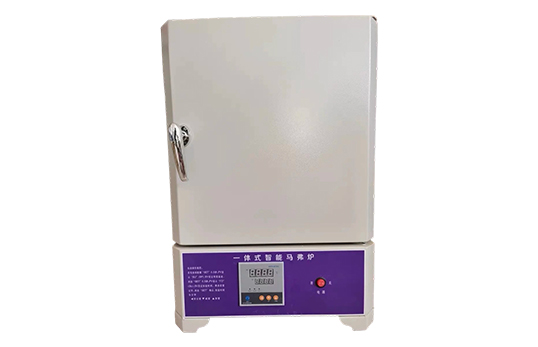

Intelligent muffle furnace (all-in-one box-type resistance furnace) JC-MF series
-
Product name锛欼ntelligent muffle furnace (all-in-one box-type resistance furnace) JC-MF series -
Order number锛 -
Model锛欽C-MT -
Stock status锛欴elivery according to contract -
Logistics锛歜y sea, by air, by express, etc.
- Product Introduction
-
1. Product Description
Intelligent Muffle Furnace (Integrated Box-type Resistance Furnace) is a periodic operating device, mainly used in laboratories, industrial and mining enterprises, and research institutes for heat treatment of small steel parts, as well as sintering, melting, analysis and high-temperature heating of metal and ceramic materials.2. Product Features
- The furnace shell is made of thickened steel plate with electrostatic spraying process, featuring novel and attractive appearance.
- Equipped with an intelligent temperature controller, ensuring accurate temperature control and easy operation.
- Adopts high-temperature resistant high-alumina furnace chamber, with strong heating power and fast heating speed.
- Designed with rapid heat dissipation function, which can effectively extend the service life of the muffle furnace.
3. Technical Parameters
Model
Rated Power (KW)
Rated Voltage (V)
Temp.Range of Controller(鈩)
Max. Continuous Working Temp. (鈩)
Temperature Sensor
Heating Element
Chamber Dimensions L脳W脳H (mm)
JC-MF10-02 2.5 220 Ambient to 1000 950 Nickel-silicon thermocouple Iron-chromium-aluminum alloy wire 200脳120脳80 JC-MF10-07 4 220 Ambient to 1000 950 Nickel-silicon thermocouple Iron-chromium-aluminum alloy wire 300脳200脳120 JC-MF10-16 8 380 Ambient to 1000 950 Nickel-silicon thermocouple Iron-chromium-aluminum alloy wire 400脳250脳160 JC-MF10-30 12 380 Ambient to 1000 950 Nickel-silicon thermocouple Iron-chromium-aluminum alloy wire 500脳300脳200 JC-MF12-02 2.5 220 Ambient to 1200 1150 Platinum-rhodium thermocouple Iron-chromium-aluminum alloy wire 200脳120脳80 JC-MF12-07 5 220 Ambient to 1200 1150 Platinum-rhodium thermocouple Iron-chromium-aluminum alloy wire 300脳200脳120 JC-MF12-16 10 380 Ambient to 1200 1150 Platinum-rhodium thermocouple Iron-chromium-aluminum alloy wire 400脳250脳160 JC-MF12-30 12 380 Ambient to 1200 1150 Platinum-rhodium thermocouple Iron-chromium-aluminum alloy wire 500脳300脳200
Notes
- Standard configuration: 1-segment temperature control. 32-segment programmable control is available as an option.
-
32-segment programmable controller: Up to 32 temperature segments can be set manually. The whole process runs automatically after programming.
Example:
- Segment 1: Heat to 300鈩 and hold for 1 hour.
- Segment 2: Heat from 300鈩 to 800鈩 and hold for 30 minutes.
- Segment 3: Cool to 600鈩 and hold for 2 hours.
- Segment 4: Heat to 700鈩 and hold for 1 hour, etc.
