1. Product introduction:

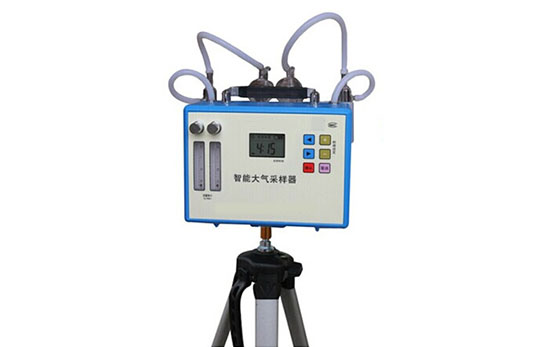

TYQ-1000K intelligent atmospheric sampler is a dual gas path atmospheric sampler launched by our company. The instrument is controlled by microcomputer constant current system, LCD digital display system, menu setting, and both AC and DC. Two parallel samples can be collected simultaneously or a single sample can be collected. Standard 6600 amp-hour lithium electrical appliances meet long-term sampling requirements.

The intelligent operation platform is built on an intelligent and perfect internal management system, menu setting, can record the last sampling time, continuous sampling, intermittent sampling, intelligent power management, timely display of power, no operation related, charging indication, high efficiency Imported motor drive. Large LCD screen display, no-operation timing shutdown, etc., is currently a more practical dual-channel intelligent atmospheric sampler.

2. Product parameters:

1. Flow range: 0.1～1L/min, 0.1～1.5L/min, 0.1～3L/min 1-5L/min (optional)

2. Flow error: ≤±5%

3. Time error: ≤±1‰

4. Large negative pressure: ≥25000Pa

5. Control mode: can be set arbitrarily within 99 hours and 59 minutes

6. Sampling time: ≥240min

7. Power supply: AC220V±10% 50Hz or DC 18V

8. Noise: ≤60dB

9. Power consumption: <10W

10. Weight: 1.6Kg

11. Volume: 210*150*90mm (light weight, easy to carry)
