1. Product introduction

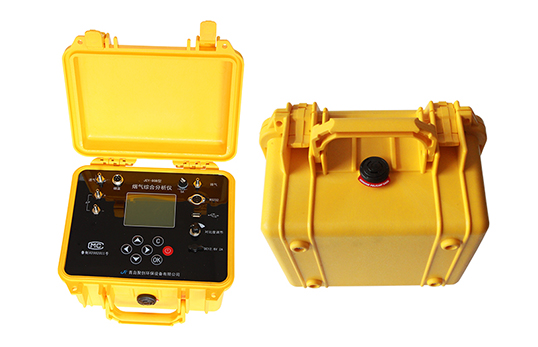

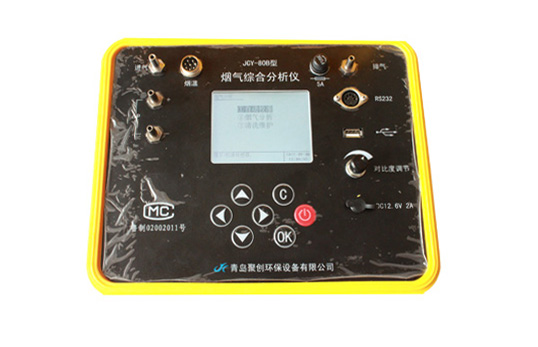

The JCY-80B flue gas comprehensive analyzer adopts the positioning electrolysis method to measure the harmful gases in the flue. It can be widely used in environmental monitoring, labor protection, industrial hygiene, factories and mines and other departments to determine the concentration of harmful gases in pipeline pollution sources and to evaluate and calibrate the accuracy of continuous flue gas measurement instruments.

2. Product parameters

3. Product Features

1. Advanced mold forming process, simple operation, small size, light weight, compact structure, easy to carry.
2. An oxygen sensor is integrated to display the oxygen content and calculate the excess air coefficient (basic type).
3. Automatically memorize the parameters entered each time, and use it automatically the next time the machine is turned on, realizing one-key sampling.
4. Adopt imported wide temperature OLED display screen, automatic backlight lighting, good man-machine interface with pictures and texts, save the trouble of adjusting the contrast, and can work in ultra-low temperature and low illumination environment.
5. The imported flow sensor is used to automatically monitor the working flow of the sampling pump, and automatically adjust the power of the sampling pump according to the pressure in the flue, so that the sampling flow is always kept constant.
6. The measurement results of imported pressure sensors and imported electrochemical sensors are more accurate. The integrated design of electrochemical sensing and signal module, replacement of sensors does not require calibration, and has temperature and linear compensation and cross-interference correction functions to ensure measurement accuracy.
7. It can measure the emission concentration and converted concentration of various harmful gases such as SO2, NO, NO2, CO, CO2, H2S (optional).
8. The built-in large-capacity rechargeable battery can work continuously for more than 8 hours without AC power. After connecting the AC power, the instrument automatically charges the battery and has a real-time clock.
9. Equipped with a hand-held flue gas pre-processor, which can dedust and dehydrate the flue gas to ensure long-term measurement accuracy (the simple sampling tube damages the sensor and causes the sensor to age in advance, and SO2 and other gases are absorbed by condensed water. cause the measurement result to be low). 10. Adopt the combination of small volume, high flow flue gas diaphragm sampling pump and electronic flowmeter to realize adjustable flow and constant current sampling.
12. The exhaust gas upper exhaust design can effectively solve the blockage caused by the lower exhaust gas and the damage caused by the exhaust gas in the instrument.
13. The parameters of the instrument can be directly calibrated linearly through the waterproof keyboard. A password must be entered for instrument maintenance and calibration to ensure the safety of instrument parameters.
14. Real-time display of parameters such as direct reading dynamic pressure, static pressure, temperature, smoke temperature, flow rate, flow rate, speed, etc., and automatic measurement of atmospheric pressure.

15. The instrument has its own storage function, which can store 10,000 sets of data, and can use micro-printing to connect RS232 to print sampling reports on site. You can also use USB memory or memory card storage, connect to a computer to print data reports.
