1. Product introduction

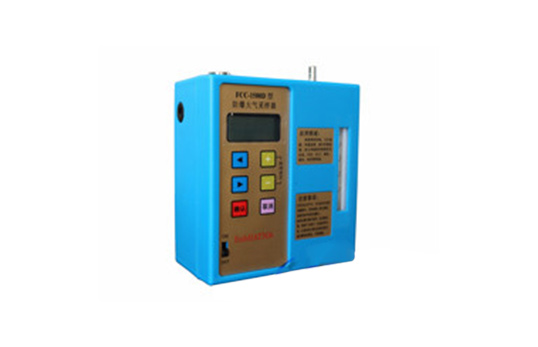

FCC-1500D type personal explosion-proof atmospheric sampler is a new type of instrument that is widely used in environmental health monitoring, occupational health monitoring, industrial and mining enterprises, scientific research workplaces, etc. to collect actual exposure to toxic and harmful substances in the workplace. The instrument adopts the latest microcomputer chip control technology, built-in high-energy nickel-cadmium rechargeable battery, one-time charging continuous running time up to 10 hours, easy operation, high timing accuracy, sturdy and durable, convenient and quick time selection, countdown 0 ~ 99 hours and 59 minutes The range is arbitrarily selected, and the power is automatically turned off when the machine stops. It is an ideal sampler among similar instruments in China.

2. Product parameters

1. Sampling flow range (optional): 1~5L/min (new standard)

2. Flow error: ≤5%

3. Timing range: arbitrarily set within 99 hours and 59 minutes

4. Continuous working time: >8 hours

5. Timing error: ≤1‰

6. Maximum negative pressure: ≥35000pa

7. Working temperature: 0℃～40℃

8. Storage temperature: -40℃～+60℃

9. Ambient atmospheric pressure: 80KPa~110Kpa

10. Relative humidity: ≤95%

11. Noise: ≤60dB

12. Control buttons allow sampling to be paused during breaks, meals or other situations

13. Anti-suckback system: It can prevent liquid and particulate matter from being sucked back into the instrument, thereby prolonging the service life of the instrument

14. Power supply: 10VDC, 220V50Hz AC

15. Weight: about 0.5kg
