1. Product introduction

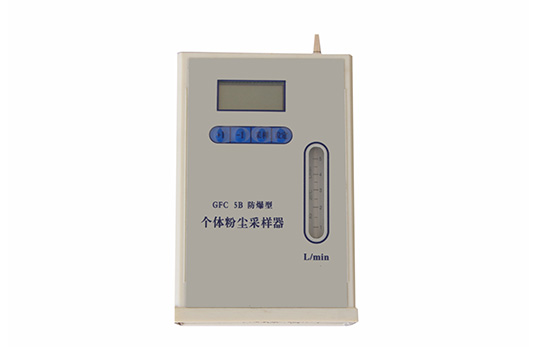

GFC-5B explosion-proof personal dust sampler is specially developed and developed according to the "GBZ/T 192 Determination of Dust in Workplace Air" standard. It is used for long-term or individual sampling. Sampling of total dust, respirable dust, metal dust.

2. Product parameters

1. Load capacity ≥5.0L/min (1000 Pa negative pressure)

2. Flow range 1.0～5.0L/min

3. Flow stability ≤5% within 8 hours

4. Flow error ≤5%

5. Timing range 0～24hr59 min error≤0.1%

6. Continuous working time ≥8 hr

7. Working temperature 0～40℃

8. Power 7.4V lithium-ion battery pack

9. Dimensions 100×52×152mm

10. Host weight 500 g

11. Explosion-proof form ExiaIICT3

3. Product Features

High performance air pump

Strong load capacity

Accurate in large flow

Long working time, small size and light weight
