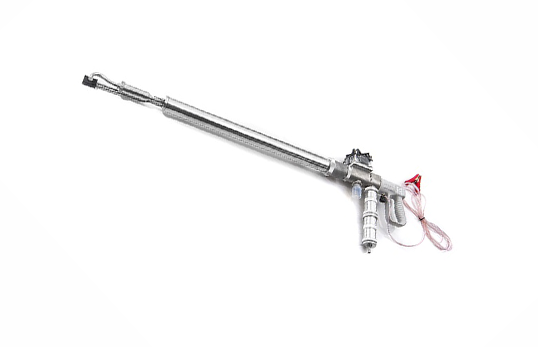

1. Product Overview

Using electric heating constant temperature and semiconductor condensation technology, it is used to collect samples of semi-volatile organic compounds in flue or exhaust gas discharge pipes.

2. Main features

High anti-corrosion stainless steel material and high-strength ABS, beautiful appearance, low-
voltage DC power supply, safe and stable use,
automatic heating, semiconductor refrigeration function, can collect particulate, vapor and gaseous semi-volatile organic compounds
Super strong dehumidification It is easy to realize the
multi-function combined sampling gun of gas-water separation, including the functions of smoke temperature and pitot tube measurement of flow rate.

3. Product parameters

Adsorption tank size: Φ40ⅹ156mm
Sampling tube length: 0.8m
Sampling nozzle diameter: Φ5/Φ6/Φ8/Φ10/Φ12
Constant temperature: (100±10)℃
Heating time: ＜30min
Heating method: heating wire heating
power supply: DC12V
power consumption: <80W
Dimensions: 1.1m
Weight: about 3.5kg
