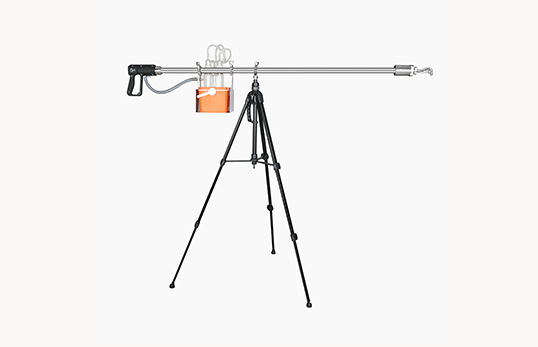

Product name锛欽C-YQ-10 Hydrogen Chloride Sampling Gun for Fixed Pollution Source -
Order number锛 -
Model锛欽C-YQ-10 -
Stock status锛欴elivery according to contract -
Logistics锛歜y sea, by air, by express, etc.
- Product Introduction
-
1. Product overview
The collected gas passes through a gun body lined with a tetrafluoroethylene tube heated at a constant temperature, passes through a tetrafluoroethylene membrane filter, and then passes through an impact absorption bottle to collect solid particulate chloride and gaseous chloride respectively.
2. Main Features
Gun body constant temperature heating
Lined tetrafluoroethylene pipe
PTFE membrane filter
Adopt DC24V heating to ensure the safety of operators
Fourth, the main parameters
Working power supply: DC24V/10A
Sampling gun heating temperature: 120鈩
Sampling tube length: 1 meter (can be customized to lengthen)
Supporting power supply: DC24V /10A
Filter material: tetrafluoroethylene
Weight: 2KG
