1. Product overview

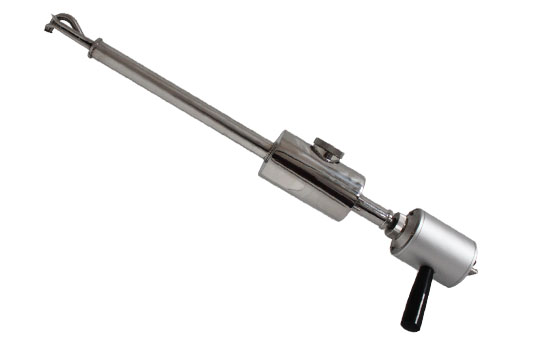

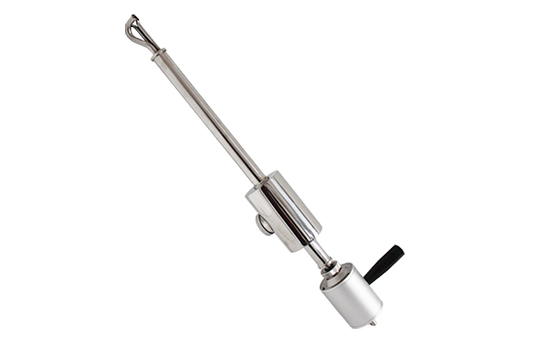

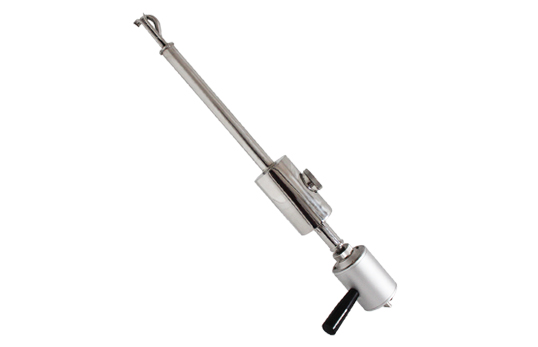

JC-YQ-03 fixed pollution source asphalt fume is mainly used to collect the mixed fume concentration of liquid, hydrocarbon particulate matter and a small amount of gaseous hydrocarbon substances formed during the production and processing of asphalt and asphalt products. It is used in conjunction with the smoke and dust flue gas tester. It can be widely used in environmental protection, health, labor, safety supervision, military, scientific research, education and other departments.

2. Main Features

The standard length of the bong is 1.5 meters, which can be customized according to requirements

Sampling can measure flue gas flow rate and flue gas temperature at the same time

Applicable standard No. 3 filter cartridge

The cooling system adopts the ice-cold method, which is easy to use

The gun body and sampling nozzle are all made of high-quality stainless steel, beautiful and durable

The filter cartridge adopts constant temperature heating method, and the heating temperature is (42±10)℃

The detection limit of asphalt smoke is 5.1mg, and the quantitative determination range is 17.0mg～2000mg

Equipped with sampling nozzles of various specifications (4mm, 5mm, 6mm, 8mm, 10mm, 12mm)
