PRODUCTS CENTER
-

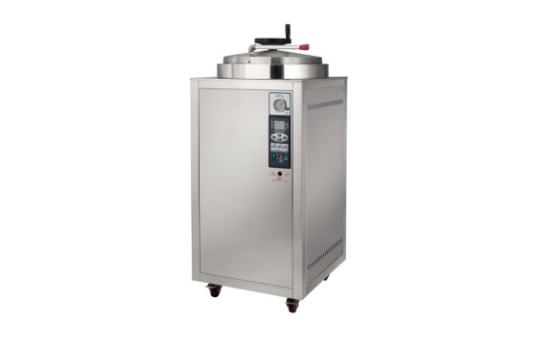

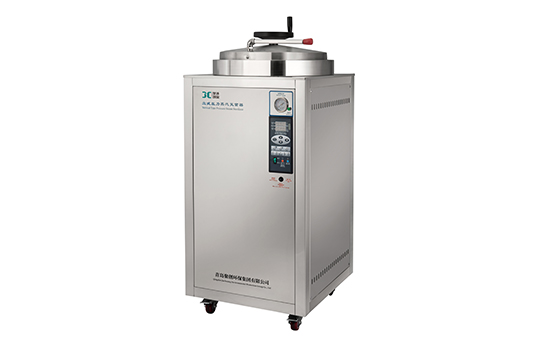

Product name：Vertical Autoclave JAVW-100/JAVW-150/JAVW-200 -
Order number： -
Model： -
Stock status： -
Logistics：
- Product Introduction
-
Product introduction：
Experience advanced sterilization with our intelligent microcomputer-controlled large capacity autoclave. Equipped with an LED digital control system, it ensures precise control and operation. Once sterilization is complete, the autoclave automatically alerts and shuts down. Safety is our priority with the electric interlock device, which supervises the temperature and pressure in real-time. The sterilizer’s cover can only be opened under safe conditions, ensuring operator safety. With a hand wheel rotary type cover, we enhance sealing and safety performance. Enjoy the convenience of preset programs for different sterilization needs. Our autoclave features a memory storage system, storing the last operation program for easy repetition. Stay informed with the digital display screen and working indicator lights, which display the running state. Additional safety features and options like interface check and USB connectivity make it a comprehensive solution for your sterilization needs.
Product parameter:
Model
JAVW-100
JAVW-150
JAVW-200
Configuration
Semi-Auto
Semi-Auto
Semi-Auto
Type
Vertical
Vertical
Vertical
Capacity (L)
100
150
200
Dimension (W×D×H, mm)
630×700×1200
630×700×1400
630×700×1600
Chamber (mm)
Φ 500×550
Φ 500×760
Φ 500×1000
Basket size (mm)
470×230 (×2)
470×230 (×3)
470×230 (×4)
Temp. Range
50～134°C
50～134°C
50～134°C
Chamber material
SUS304
SUS304
SUS304
Chamber thickness (mm)
3
3
3
Display system
LED
LED
LED
Controller
Microcomputer
Microcomputer
Microcomputer
Rated working pressure
0.217MPa
0.217MPa
0.217MPa
Time setting range
0-99h
0-99h
0-99h
Exhaust mode
External
External
External
Opening way
Shift type of quick open
Shift type of quick open
Shift type of quick open
Power supply
380V
380V
380V
Rated power
6000W
6000W
6000W
Working environment
5-45°C. relative humidity 10％-85％
5-45°C. relative humidity 10％-85％
5-45°C. relative humidity 10％-85％
Packing size (mm)
760x800x1340
760x800x1530
760x800x1720
Gross weight (KGS)
188
213
238
product feature:
Intelligent microcomputer control system：
Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
Electric interlock device:
The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
The structure of cover’s opening:
Using hand wheel rotary type cover to improve sealing and safety performance.
Preset program:
Can preset fixed program that sterilize.
Memory storage system:
Store the last operation pro-gram so convenient next operation.
Interface check:
Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
Digital display screen:
Digital display screen and working indicator light display running state.
Safety devices:
It can be equipped with additional USB function interface, which is convenient to connect the sterilization process and data collection.
product price:
型号
市场报价
JAVW-100
23000
JAVW-150
25000
JAVW-200
28000
