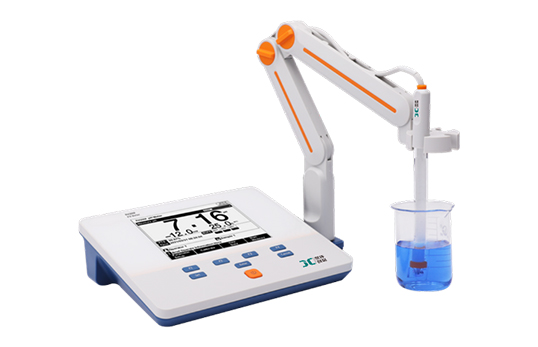

Product name：JC-PH300F PH Meter -
Order number： -
Model：JC-PH300F -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
High resolution LCD display, 5.7 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 500 sets (GLP-compliant).
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-5 points calibration with Standard Recognition.
Selectable pH buffer groups, including NIST, DIN, GB, USA.
Automatic electrode diagnosis with pH slope and offset display.
Include:
E-301-QC 3 in 1 pH composite electrode
NIST pH standard solution(4.01, 7.00, 10.01) , 50ml/vial
REX-5 electrode stand
Product parameter:
Model
PH300F
Parameters
pH/Temp.(mV)
pH
Range
-2.00 to 20.00pH
Resolution
0.1, 0.01 pH
Accuracy
±0.01 pH
Calibration Points
Up to 5
Standard Customization
Yes
Standard Recognition
NIST, GB, USA and DIN buffers
mV
Range
-2000.0 to 2000.0 mV
Resolution
0.1 mV
Accuracy
±0.3 mV or ±0.1%
Temperature
Range
-5 to 110 ºC, 23 to 230 ºF
Unit
ºC, ºF
Resolution
0.1
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
500 results each
GLP Features
Yes
Inputs
pH Electrode
BNC(Q9)
Temp. Probe
4-pin aviation connector
Outputs
USB
PC
RS 232
printer
Display options
Backlight
Yes
Auto Shutdown
1~60 min, off
IP Rating
IP54
Date and Time
Yes
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195× 68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
370×320×220 mm
Weight (Gross)
2.5 kg
