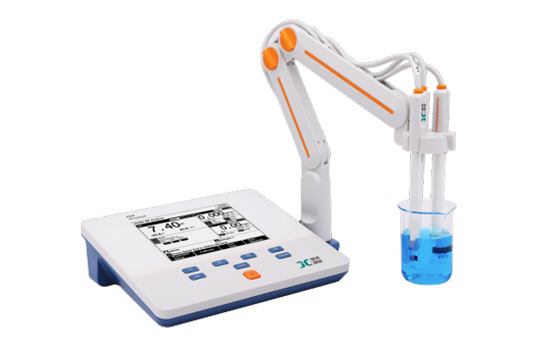

Product name：Jc-M300f Multi-Parameter Analyzer -
Order number： -
Model：JC-M300F -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² High resolution LCD display, 5.7 inches.
² Multi-reading feature allows auto-read, timed-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data Storage 500 sets (GLP-compliant).
² Support for USB or RS-232 communication.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
Include:
² E-301-QC 3 in 1 pH composite electrode
² DJS-1VTC EC electrode
Product parameter:
Model
M300F
Parameters
pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH
Range
-2.00 to 20.00pH
Resolution
0.1, 0.01 pH
Accuracy
±0.01 pH
Calibration Points
Up to 5
Standard Customization
Yes
Standard Recognition
NIST, GB, USA and DIN buffers
Slope Limit
Yes
mV
Range
-2000.0 to 2000.0 mV
Resolution
0.1 mV
Accuracy
±0.3 mV or ±0.1%
pX
Range
-2.00 to 20.00 pX
Resolution
0.1, 0.01 pX
Accuracy
±0.01 pX
Calibration Points
Up to 5
ISE
Range
1.000e-9 to 9.999e+9
Unit
mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb
Resolution
Up to 4 significant digits
Accuracy
±0.5%
Calibration Points
Up to 5
Conductivity
Range
0.000 μS/cm to 1000 mS/cm
Resolution
0.001 μS/cm minimum,
various with range selection
Accuracy
±1.0% FS
Reference Temperature
20, 25 ºC
Calibration Points
Up to 3
Standard Recognition
84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity
Range
5.00 Ω·cm~20.00 MΩ·cm
Resolution
0.01 Ω·cm minimum
Accuracy
±1.0% FS
TDS
Range
0.00 ppm~300 ppt
Resolution
0.01mg/L minimum, various with range selection
Accuracy
±1.0% FS
Salinity
Range
0.0~80.0 ppt
Resolution
0.1ppt
Accuracy
±2ppt
Dissolved
Oxygen Concentration
Range
0.00 to 20.00 ppm
Resolution
0.01 ppm
Accuracy
±0.10 ppm
Calibration Points
Air-saturated water or zero point
Barometric Compensation
Yes
Manual Salinity Factor Correction
Yes
Saturation
Range
(0.0 to 200.0)%
Resolution
0.1%
Accuracy
±2.0%
Temperature
Range
-5 to 110 ºC, 23 to 230 ºF
Unit
ºC, ºF
Resolution
0.1
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
500 results each
GLP Features
Yes
Inputs
pH Electrode
BNC(Q9)
DO with Temp. Probe
4-pin aviation connector
Conductivity with Temp. Probe
5-pin aviation connector
Outputs
USB
PC
RS 232
printer
Display options
Backlight
Yes
Auto Shutdown
1~60 min, off
IP Rating
IP54
Date and Time
Yes
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195×68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
370×305×330 mm
Weight (Gross)
3.5 kg
