PRODUCTS CENTER
-

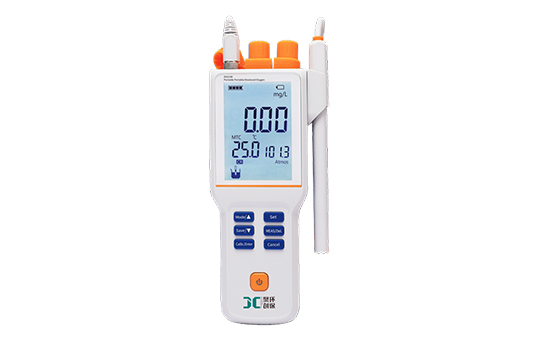

Product name：JC-DO210E DO Meter -
Order number： -
Model：JC-DO210E -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² LCD display screen, 3.5 inches.
² Multi-reading feature allows auto-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data capacity of up to 200 sets for each parameter.
² Auto-power off feature effectively extends the battery service life.
² Reset feature automatically resumes all settings back to factory default options.
² IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
² Support for air-saturated water or zero oxygen calibration
² Manual barometric pressure compensation.
² Manual Salinity Factor Correction.
Include:
² DO-957-Q polarographic DO electrode（zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover）
² Electrode holder
² Silicone rubber case
² Wristbands
Product parameter:
Model
DO210E
Parameters
DO/Temp(DO Saturation).
Dissolved
Oxygen Concentration
Sensor Type
Polarographic
Range
0.00 to 20.00 mg/L
Resolution
0.01mg/L
Accuracy
±0.1mg/L
Calibration Points
Air-saturated water or zero point
Barometric Compensation
Yes
Manual Salinity Factor Correction
Yes
DO Saturation
Range
(0.0 to 200.0)%
Resolution
0.1%
Accuracy
±2.0%
Temperature
Range
-5 to 110 ºC
Unit
ºC
Resolution
0.1ºC
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto Read, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
200 results each
Inputs
DO with Temp. Probe
4-pin aviation connector
Display options
Backlight
Yes
Auto Shutdown
300, 600, 1200, 1800, 3600 sec., off
IP Rating
IP65
General
Power
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions
80 x 225 x 35 mm
Weight
400g (0.88 lb)
Dimensions (Carton)
300×290×140 mm
Weight (Gross)
1 kg
