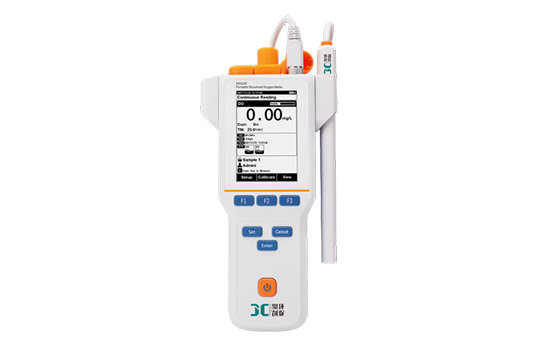

Product name：JC-DO310F DO Meter -
Order number： -
Model：JC-DO310F -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² LCD display screen, 3.5 inches.
² Multi-reading feature allows auto-read, timed-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data capacity of up to 500 sets for each parameter (GLP-compliant).
² Support for USB communication.
² Auto-power off feature effectively extends the battery service life.
² Reset feature automatically resumes all settings back to factory default options.
² IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
² Support for air-saturated water or zero oxygen calibration.
² Auto barometric pressure compensation
² Manual Salinity Factor Correction
² Selectable pressure unit, including kPa, mbar, Torr, Atm.
Include:
² DO-958-Q polarographic DO electrode（zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover）
² Electrode holder
² Silicone rubber case
² Wristbands
² Carrying Case
Product parameter:
Model
DO310F
Parameters
DO/Temp(DO Saturation).
Dissolved
Oxygen Concentration
Sensor Type
Polarographic
Range
0.00 to 50.00 ppm
Resolution
0.01ppm
Accuracy
±0.1ppm
Calibration Points
Air-saturated water or zero point
Barometric Compensation
Yes
Manual Salinity Factor Correction
Yes
DO Saturation
Range
(0.0 to 300.0)%
Resolution
0.10%
Accuracy
±2.0%
Temperature
Range
-5 to 110 ºC, 23 to 230 ºF
Unit
ºC, ºF
Resolution
0.1
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto-Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
1000 Groups
GLP Features
Yes
Inputs
DO with Temp. Probe
4-pin aviation connector
Outputs
USB
PC, printer
Display options
Backlight
Yes
Auto Shutdown
300, 600, 1200, 1800, 3600sec., off
IP Rating
IP65
Date and Time
Yes
General
Power
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions
80 x 225 x 35 mm
Weight
400g (0.88 lb)
Dimensions (Carton)
410×330×165 mm
Weight (Gross)
5.5 kg
