PRODUCTS CENTER
-

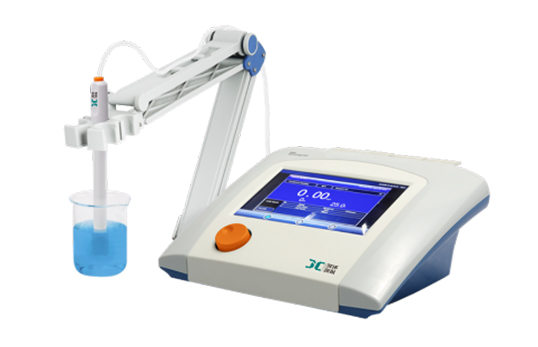

Product name：JC-DO400F DO Meter -
Order number： -
Model：JC-DO400F -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² High resolution LCD display, 5.7 inches.
² Multi-reading feature allows auto-read, timed-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data Storage 500 sets (GLP-compliant).
² Support for USB or RS-232 communication.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
² Support for air-saturated water or zero oxygen calibration.
² Auto barometric pressure compensation
² Manual Salinity Factor Correction
² Selectable pressure unit, including kPa, mbar, Torr, Atm.
Include:
² DO-958-Q polarographic DO electrode（zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover）
² REX-5 electrode stand
Product parameter:
Model
DO400F
Parameters
DO/Temp(DO Saturation).
Dissolved
Oxygen Concentration
Sensor Type
Polarographic
Range
0.00 to 99.99 ppm
Resolution
0.01ppm
Accuracy
±0.10ppm，（0.00~50.00）ppm
±0.50ppm，（50.0~99.99）ppm
Calibration Points
Air-saturated water or zero point
Barometric Compensation
Yes
Manual Salinity Factor Correction
Yes
DO Saturation
Range
(0.0 to 600.0)%
Resolution
0.1%
Accuracy
±2.0%
Temperature
Range
-10 to 135 ºC, 14 to 275 ºF
Unit
ºC, ºF
Resolution
0.1
Accuracy
±0.1ºC
Measurement
Reading Mode
Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
500 results each
GLP Features
Yes
Inputs
DO with Temp. Probe
4-pin aviation connector
Outputs
USB
PC
RS 232
printer
Display options
Backlight
Yes
Auto Shutdown
1~60 min, off
IP Rating
IP54
Date and Time
Yes
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195×68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
370×320×220 mm
Weight (Gross)
2.5 kg
