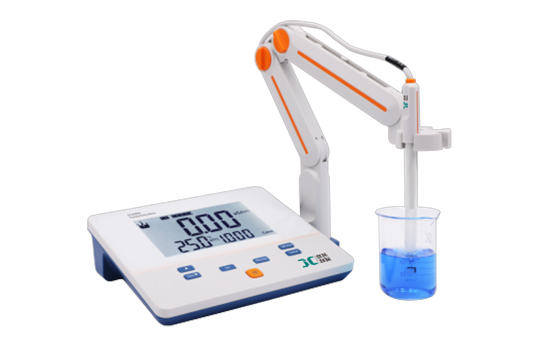

Product name：JC-EC200E Conductivity Meter -
Order number： -
Model：JC-EC200E -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² High resolution LCD display screen, 6.0 inches.
² Multi-reading feature allows auto-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data Storage 50 sets for each parameter.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
² 1 point calibration with Standard Recognition.
² Cell constant is settable
Include:
² DJS-1VTC EC electrode
² 1413μS/cm EC standard solution, 50ml, 1 vial
² REX-5 electrode stand
Product parameter:
Model
EC200E
Parameters
EC/Temp.(TDS)
Conductivity
Range
0.00 μS/cm to 200 mS/cm
Resolution
0.01 μS/cm minimum, various with range selection
Accuracy
±1.0% FS
Reference Temperature
25 ºC
Calibration Points
Up to 1
Standard Recognition
84μS/cm, 1413μS/cm, 12.88mS/cm
TDS
Range
0.00 mg/L~100g/L
Resolution
0.01 mg/L minimum, various with range selection
Accuracy
±1.0% FS
Temperature
Range
-5.0 to 110 ºC
Unit
ºC
Resolution
0.1ºC
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto Read, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
50 results each
Inputs
Conductivity with Temp. Probe
5-pin aviation connector
Display options
Backlight
Yes
Auto Shutdown
300, 600, 1200, 1800, 3600 sec., off
IP Rating
IP54
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195×68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
350×280×220 mm
Weight (Gross)
2.5 kg
