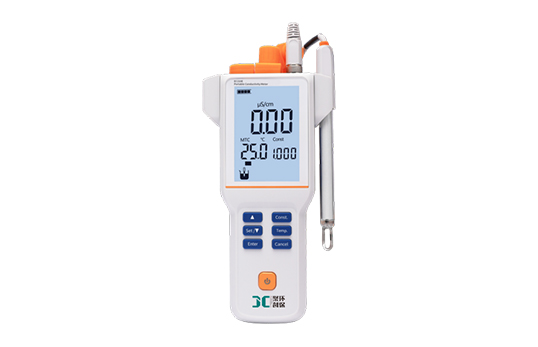

Product name：JC-EC210E Conductivity Meter -
Order number： -
Model：JC-EC210E -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² LCD display screen, 3.5 inches.
² Multi-reading feature allows auto-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data capacity of up to 200 sets for each parameter.
² Auto-power off feature effectively extends the battery service life.
² Reset feature automatically resumes all settings back to factory default options.
² IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
² 1 point calibration with Standard Recognition.
² Cell constant is settable
² Automatic/manual temperature compensation ensures accurate results.
Include:
² DJS-1VTC EC electrode
² 1413μS/cm EC standard solution, 50ml, 1 vial
² Electrode holder
² Silicone rubber case
² Wristbands
Product parameter:
Model
EC210E
Parameters
EC/Temp.(TDS)
Conductivity
Range
0.00 μS/cm to 200 mS/cm
Resolution
0.01 μS/cm minimum,
various with range selection
Accuracy
±1.0% FS
Reference Temperature
25 ºC
Calibration Points
Up to 1
Standard Recognition
84μS/cm, 1413μS/cm, 12.88mS/cm
TDS
Range
0.00mg/L~300g/L
Resolution
0.01mg/L minimum, various with range selection
Accuracy
±1.0%FS
Temperature
Range
-5 to 110 ºC
Unit
ºC
Resolution
0.1ºC
Accuracy
±0.2ºC
Measurement
Reading Mode
Auto Read, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
200 results each
Inputs
Conductivity with Temp. Probe
5-pin aviation connector
Display options
Backlight
Yes
Auto Shutdown
300, 600, 1200, 1800, 3600 sec., off
IP Rating
IP65
General
Power
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions
80×255×35 mm
Weight
400g (0.88 lb)
Dimensions (Carton)
300×290×140 mm
Weight (Gross)
1 kg
