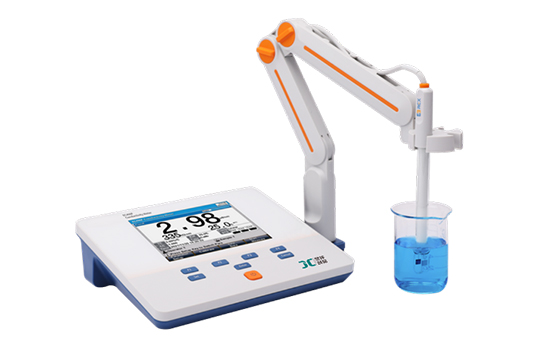

Product name：JC-EC400F Conductivity Meter -
Order number： -
Model：JC-EC400F -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product feature：
² High resolution LCD display, 5.7 inches.
² Multi-reading feature allows auto-read, timed-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data Storage 500 sets (GLP-compliant).
² Support for USB or RS-232 communication.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
² 1-3 points calibration with Standard Recognition.
² Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
² Temperature compensation type (none, linear, pure water).
Include:
² DJS-1VTC EC electrode
² 1413μS/cm EC standard solution, 50ml, 1 vial
² REX-5 electrode stand
Product parameter:
² Model
² EC400F
² Parameters
² EC/Temp.(Resistivity/TDS/Sal.)
² Conductivity
² Range
² 0.000 μS/cm to 1000 mS/cm
² Resolution
² 0.001 μS/cm minimum,
² various with range selection
² Accuracy
² ±0.5% FS
² Reference Temperature
² 20, 25 ºC
² Calibration Points
² Up to 3
² Standard Recognition
² 84μS/cm, 1413μS/cm, 12.88mS/cm
² Resistivity
² Range
² 5.00 Ω·cm~100.0 MΩ·cm
² Resolution
² 0.01 Ω·cm minimum
² Accuracy
² ±0.5% FS
² TDS
² Range
² 0.00ppm~1000ppt
² Resolution
² 0.01 ppm minimum, various with range selection
² Accuracy
² ±0.5% FS
² Salinity
² Range
² 0.0～80.0 ppt
² Resolution
² 0.1ppt
² Accuracy
² ±1ppt
² Temperature
² Range
² -10 to 135 ºC, 14 to 275 ºF
² Unit
² ºC, ºF
² Resolution
² 0.1
² Accuracy
² ±0.1ºC
² Measurement
² Reading Mode
² Auto Read (Fast, Medium, Slow), Timed, Continuous
² Reading Prompts
² Reading, Stable, Locked
² Temp. Compensation
² ATC, MTC
² Data management
² Data Storage
² 500 results each
² GLP Features
² Yes
²
² Conductivity with Temp. Probe
² 5-pin aviation connector
² Outputs
² USB
² PC
² RS 232
² printer
² Display options
² Backlight
² Yes
² Auto Shutdown
² 1~60 min, off
² IP Rating
² IP54
² Date and Time
² Yes
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195×68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
370×305×330 mm
Weight (Gross)
2.5 kg
