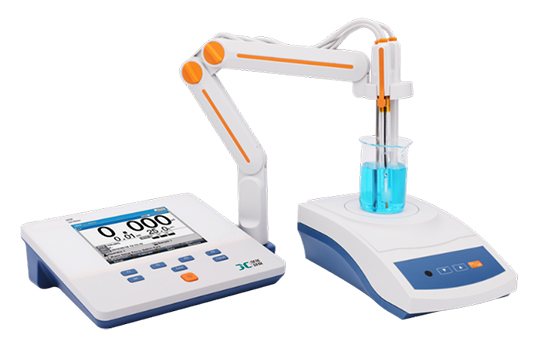

Product name：Jc-I400f Ph/Ion Meter -
Order number： -
Model：JC-I400F -
Stock status：Delivery according to contract -
Logistics：Delivery according to contract
- Product Introduction
-
Product feature：
² High resolution LCD display, 5.7 inches.
² Multi-reading feature allows auto-read, timed-read and continuous-read.
² Automatic/Manual temperature compensation ensures accurate results.
² Auto-hold feature senses and locks the measurement endpoint.
² Data Storage 500 sets (GLP-compliant).
² Support for USB or RS-232 communication.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
Include:
² JB-10 stirrer
² REX-5 electrode stand
Product parameter:
Model
I400F
Parameters
pH/ISE/Temp.(mV/pX)
pH
Range
-2.000 to 20.000 pH
Resolution
0.1, 0.01, 0.001pH
Accuracy
±0.002 pH
Calibration Points
Up to 5
Standard Customization
Yes
Standard Recognition
NIST, GB, DIN, USA and MERK buffers
Slope Limit
Yes
mV
Range
-2000.00 to 2000.00 mV
Resolution
0.1, 0.01 mV
Accuracy
±0.1 mV or ±0.03% of
reading whichever is greater
pX
Range
-2.000 to 20.000 pX
Resolution
0.1, 0.01, 0.001 pX
Accuracy
±0.002 pX
Calibration Points
Up to 5
ISE
Range
1.000e-9 to 9.999e+9
Unit
mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb
Resolution
Up to 4 significant digits
Accuracy
±0.3%
Calibration Points
Up to 5
Temperature
Range
-10 to 135 ºC, 14 to 275 ºF
Unit
ºC, ºF
Resolution
0.1
Accuracy
±0.1ºC
Measurement
Reading Mode
Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
500 results each
GLP Features
Yes
Inputs
pH Electrode
BNC(Q9)
Temp. Probe
4-pin aviation connector
Outputs
USB
PC
RS 232
printer
Display options
Backlight
Yes
Auto Shutdown
1~60 min, off
IP Rating
IP54
Date and Time
Yes
General
Power
AC Adapter, 100-240V AC input, DC9V output
Dimensions
242×195×68 mm
Weight
900g (1.98 lb)
Dimensions (Carton)
370×320×220 mm
Weight (Gross)
3.5 kg
