1. Product introduction

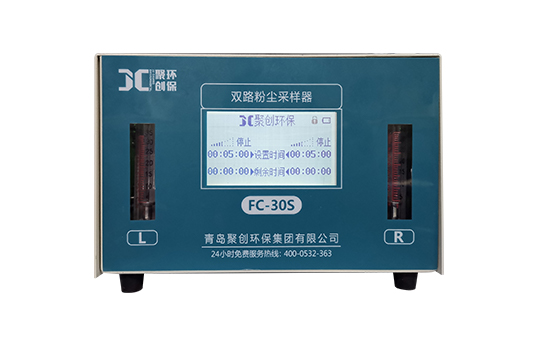

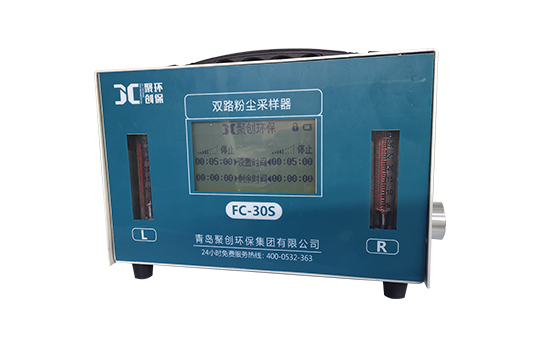

The FC-30S dual-channel respirable dust sampler is mainly suitable for the determination of respirable dust and total dust in the air in workplaces such as labor hygiene, environmental hygiene and workshop air.

2. Product parameters

Working Voltage: DC11.1V; AC220V±10V 50Hz

Flow Range: Multiple flow ranges available, such as 5～25L/min, 5-35L/min, 3-35L/min, 0-30L/min, 3-30L/min, etc.

Pumping Negative Pressure: ≥300Pa

Flow Accuracy: ±5%

Stability: ≤5%

Timing Accuracy: ≤±1%

Working Noise: <80dB

Ambient Temperature: -5～40℃

Relative Humidity: ≤95%

Charging Current: 500mA

Continuous Working Time: >180min

Dimensions: 208130140mm

Instrument Weight: 3.6Kg

Sampling Range: Respirable dust, total dust

3. Product Features

1. Large LCD screen, clear data, easy to operate.

2. Automatic locking function, effectively prevent misoperation.

3. In the setting interface, the font can be enlarged for easy operation.

4. Equipped with a pause function, which can be stopped and continued at any time.

5. Low battery reminder function. It can still be sampled when the battery is too low.

6. When the sampling is over, the screen backlight will automatically turn on and prompt.

7. Dual-channel design, can collect two kinds of samples or parallel samples, and can be controlled separately.

8. The instrument has the advantages of small size, light weight, easy to carry, high timing accuracy, accurate measurement, stable flow and easy operation.
