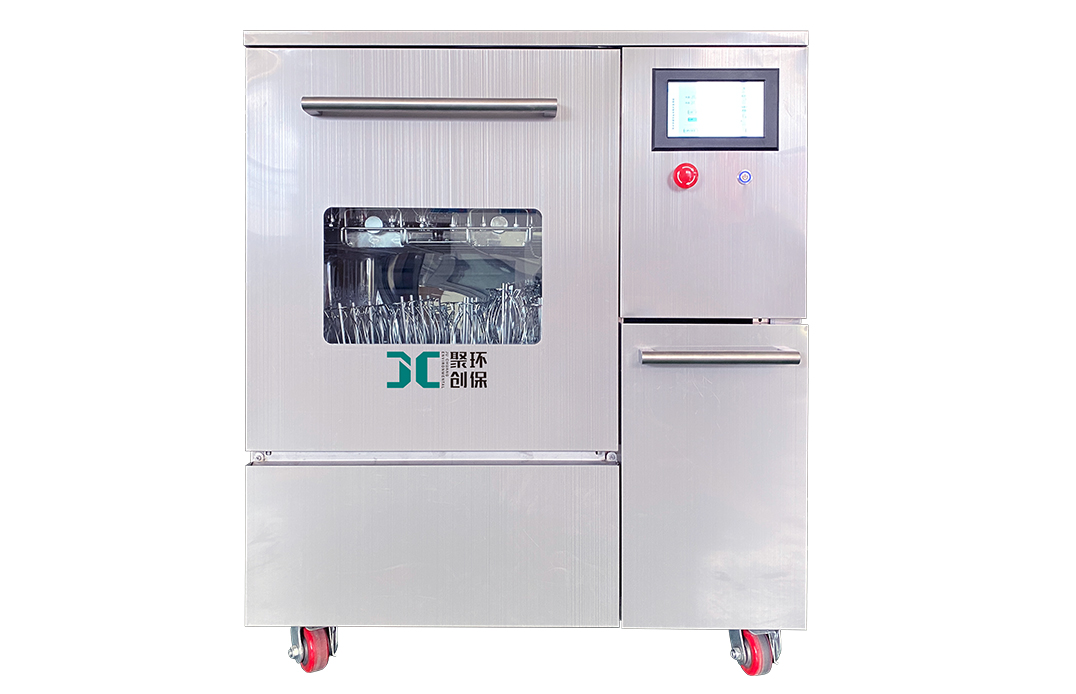

Fully automatic glassware cleaning machine JC-XPJ200P
-
Product name锛欶ully automatic glassware cleaning machine JC-XPJ200P -
Order number锛 -
Model锛欽C-XPJ200P -
Stock status锛欴elivery according to contract -
Logistics锛歜y sea, by air, by express, etc.
- Product Introduction
-
I. Product Introduction
The bottle washing machine offers laboratory operators an advanced, fully automatic laboratory glassware cleaning solution - when cleaning laboratory glassware such as beakers, pipettes, volumetric flasks, conical flasks, petri dishes, and test tubes, many laboratories carefully select the cleaning equipment they use. One of the reasons is to avoid the risk of being harmed by dangerous substances; manual cleaning may cause dangerous injuries, and infectious and toxic contaminants can pose health risks; during manual cleaning, cleaning agents often contain substances with strong irritants, which can affect human health; moreover, machine cleaning is more standardized, more effective, and more professional.
The fully automatic glassware cleaning machine adopts a closed, fully automatic operation program, minimizing potential risks in the laboratory and providing the best protection for the staff. The bottle washing machine can perform standard cleaning and disinfection on test tubes, pipettes, petri dishes, conical flasks, volumetric flasks, beakers, and other laboratory vessels, providing reliable and efficient cleaning guarantees for experiments.
II. Parameter Characteristics
1. 鈽 The exterior material is 304 stainless steel; the inner cabin body is 316L mirror stainless steel, with seamless design and rounded corners. The inner cabin is a self-cleaning type, and the equipment will automatically clean during operation.
2. Equipped with 2 high-precision metering peristaltic pumps and 2 built-in cleaning agent storage tanks.
3. The inner cabin volume is 202L, capable of accommodating two layers of cleaning racks, with a total of 4 sets of cleaning racks that can be interchanged up and down. The upper layer can hold containers up to 170mm, the lower layer up to 240mm, and a single layer is 470mm. The water tank capacity is 20L; external dimensions: 909脳715脳998mm, inner cabin dimensions: 552脳565脳653mm.
4. 鈽 Multi-functional cleaning rack: Two layers can be placed to form 4 sets of cleaning racks, extremely convenient. It can be disassembled, interchanged up and down, and combined.
5. 鈽 The water inlet of the cleaning rack, the two layers of cleaning racks have a total of 4 water inlets. And the various water outlets have an automatic closing function when the cleaning rack is not in use.
6. 鈽 The unique spray pipe mold design technology prevents the common stainless steel spray pipes from scratching the vessels, reducing the cleaning dead zones caused by separate welding.
7. 鈽 Mold injection support frame, resistant to high temperatures and precipitation, with good compatibility, capable of adapting to various types and sizes of glass vessels.
8. Equipped with 93鈩 heat disinfection function, in accordance with ENISO15883 standards;
9. Two-layer full glass fiber reinforced plastic heat-insulating visible window door, allowing observation of the cabin cleaning situation, with heat insulation and leak prevention functions.
10. Automatic suction intelligent door lock structure, multiple safety protection measures such as prohibiting opening during the cleaning process and in high-temperature conditions.
11. After cleaning, the glass vessels can detect the residual heavy metal ions 鈮 0.02mg/L.
12. 鈽 AI intelligent voice module recognition, can control the equipment's on/off functions and other functions through voice control (optional).
13. 鈽 Online conductivity monitoring, can monitor the online conductivity of the rinsing water in real time. If the conductivity of the rinsing water drainage does not reach the set value, rinsing can be carried out again. (optional)
14. 鈽 Cyclic spray pressure monitoring system, can monitor the pressure during equipment operation. When the cyclic pressure is lower than the set value, it will stop running and give an alarm. (optional)
15. 鈽 Supports remote IoT function, can be used for equipment monitoring and operation via mobile phone or computer anywhere with an internet connection. Can edit, call and clean the equipment program, and remotely monitor the cleaning process and cleaning status of the equipment. Without IoT, only local network areas can operate the equipment through the computer on the same network segment to browse the page and perform operations and view the equipment. Realize remote control within the local network. With alarm or consumable expiration reminder (optional)
16. 鈽 Equipped with USB interface and printer to print cleaning records for archiving (optional)
17. 鈽 Water leakage alarm: The connection point of the equipment's water inlet has an automatic electromagnetic valve. The equipment monitors the water pipe and drip tray to prevent leakage, helping to ensure the safety of the laboratory. If leakage is detected, the current program will be cancelled, the water inlet valve will automatically close, and the drainage pump will be automatically started. (optional)
III. Control System
1. It is controlled by a microcomputer programmable controller. It features a 7-inch color touch screen. The same interface can be used for parameter setting and modification. The cleaning steps and programs in operation can also be displayed on the same interface. Software upgrades and connection to the laboratory Linux system are possible.
2. The true-color LCD display allows for the random and unlimited combination of various cleaning program modules. An infinite number of cleaning programs can be formed, and each cleaning module can be set, saved, and controlled independently.
3. 鈽匔leaning machine computer software system: The cleaning program has the advantages of manual cleaning. The process of a certain program can repeatedly clean the vessel in an artificial cleaning manner. 20 system preset programs and fixed programs are pre-stored, and 200 custom programs can be freely edited to meet the different cleaning needs of customers.
4. Data storage function: Historical cleaning data can be traced, fault alarms for each component of the equipment, and diagnostic records can be checked.
5. The door is an automatic electronic safety door lock function. During the operation of the instrument, it automatically locks and cannot be opened to prevent accidental opening of the door and steam injury. When it is necessary to open the door, the user must perform program unlocking through screen touch operation.
6. It is equipped with 2 PT100 temperature sensors, with precise temperature control and an independent temperature monitoring system.
7. The water heating power is 4000W, and the total power is 5000W.
IV. Efficient Circulating Spray System
1. The circulating pump uses an imported pump with a power of 750W and a circulation volume of 430L/min.
2. 鈽 The water outlet from the inner tank of the equipment adopts a top, back and bottom outlet method, with a total of 4 outlet ports, reducing the pressure loss of the circulating pipeline.
3. The outlet ports of the inner tank have an automatic sensing sealing function. When using the lower cleaning rack alone, the outlet ports of the upper cleaning rack can automatically close, without the need for manual blocking, making the operation convenient.
4. The equipment can be equipped with a pure water module or an external trial-scale pure water machine of the same brand. It can be operated according to the normal configuration of a pure water machine, including pre-treatment, reverse osmosis membrane, etc. The water conductivity is less than 30渭S/cm, meeting the water quality requirements for instrument cleaning (optional).
V. Blower Drying System
1. The drying fan has a power of 1100W and an air flow rate of 145m3/h. It dries quickly and efficiently.
2. The heating power of the drying fan is 2400W, and the total operating power can reach 5000W. It can perform cold/hot air exchange drying on glassware, with temperature/time adjustable, thus avoiding the deformation of the glassware due to high temperature and affecting the experimental test results.
3. The air duct system: The inlet and outlet of the air duct are equipped with HEPA (high-efficiency air filtration system) filters, which effectively filter 99.99% of the hot air coming from the fan to prevent external air from polluting the cabin and the cabin air from polluting the outside.
4. The HEPA filter has a filter failure alarm function, and an alarm will be displayed on the screen before the filter fails.
5. Steam condensation system: It is equipped with an internal steam condenser to prevent steam from leaking and causing indoor pollution.
