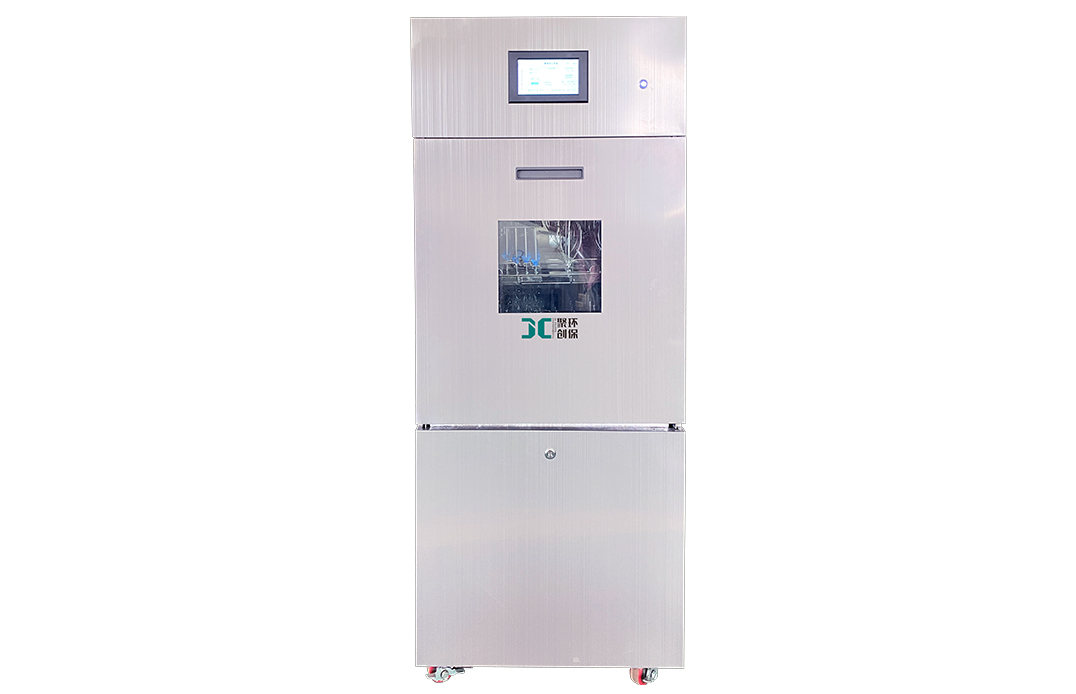

Fully automatic glassware cleaning machine JC-XPJ300P
-
Product name锛欶ully automatic glassware cleaning machine JC-XPJ300P -
Order number锛 -
Model锛欽C-XPJ300P -
Stock status锛欴elivery according to contract -
Logistics锛歜y sea, by air, by express, etc.
- Product Introduction
-
I. Product Introduction
The bottle washing machine offers laboratory operators an advanced fully automatic laboratory glassware cleaning solution - when cleaning laboratory glassware such as beakers, pipettes, burettes, conical flasks, petri dishes and test tubes, many laboratories carefully select the cleaning equipment they use. One of the reasons is to avoid the risk of being harmed by dangerous substances; manual cleaning may cause dangerous injuries, and infectious and toxic contaminants can pose health risks; during manual cleaning, the cleaning agents often contain substances with strong irritancy, which can affect human health; moreover, machine cleaning is more standard, more effective, and more professional.
The fully automatic glassware cleaning machine adopts a closed, fully automatic operation program, minimizing potential risks in the laboratory and providing the best protection for the staff. The bottle washer can perform standard cleaning and disinfection on test tubes, pipettes, petri dishes, conical flasks, volumetric flasks, beakers, and other laboratory equipment, providing reliable and efficient cleaning guarantees for experiments.
II. Product Specifications
Item Specification External Dimensions (mm) 701脳845脳1655 (door closed) 701脳1565脳1655 (door open)Operating Environment 5鈩冣40鈩 Cleaning Chamber Volume (L) 308 Circulation Pump Power (KW) 1.5 Cleaning Chamber Dimensions (mm) 690脳670脳966 Circulation Pump Flow Rate (L/min) 950 Cleaning Space (L) 295 Water Heating Power (KW) 6 Power Supply 380V/50Hz Drying Fan Power (KW) 1.1 Rated Total Power (KW) 7.5 Drying Heating Power (KW) 2.4 Maximum Noise Level (dB) 45 Peristaltic Pump Dosing Rate (mL/min) 360
III. Product Features
1. 7.1-inch LCD liquid crystal touch display, showing various programs, operation stages, temperatures, and machine malfunctions.
2. Provide 8 customizable program groups. The cleaning procedures can be freely combined and can be washed and rinsed any number of times. Three-level password management is available, suitable for different levels of managers to manage and modify parameters. One-click start, simple and convenient.
3. Automatic fault diagnosis program, with the buzzer automatically sounding an alarm. When the instrument malfunctions, the screen will display the fault information, indicating the location of the problem and facilitating the engineer's maintenance work; the instrument also provides warning messages to prompt users to handle the issue promptly.
4. Provide thermal disinfection at 93鈩 in accordance with the international standard EN ISO 15883-1/2.
5. The exterior is made of 304 brushed stainless steel, which is elegant and durable. It is resistant to wear and corrosion. The cabin body is manufactured by seamless welding of AISI 316L stainless steel. The round corners and sloping base of the corrosion-resistant stainless steel cabin have no welding design, eliminating dead corners and preventing the accumulation of dirt and the formation of bacteria.
6. Standardly equipped with three-layer stainless steel filter screens, which effectively trap impurities, prevent the circulation pipeline from getting clogged, enhance the cleaning effect, and extend the service life of the equipment. The filter screen of the cleaning chamber is equipped with a lifting structure, making it convenient for users to clean.
7. The double-layer insulated door can reduce heat loss and electricity consumption. It features low noise design, with the noise level maintained below 45 DB.
8. Standardly equipped with a HEPA high-efficiency air filter with a filtration efficiency of over 99.99%. This filter effectively filters the air entering the drying system. It also has a filter failure alarm function, which will alert on the display screen before the filter in the university fails.
9. The unique ESL circuit control technology ensures that the door is forcibly opened during the operation of the equipment, and the power is immediately cut off to stop the operation of the equipment.
10. Touch screen operation. Optional USB port for inserting USB drives to record various control parameters during the cleaning process in real time, and to export the data in text format to the computer for convenient record-keeping in the laboratory. PC remote connection control technology allows for remote modification of cleaning parameters, enabling the isolation of hazardous substances for cleaning in the laboratory. Optional printing module is available, and after cleaning is completed, it will automatically print out the data for each step of the cleaning process.
11. The door body is made of double-layer tempered glass, which is both elegant and practical, allowing users to observe the cleaning process inside the cabin in real time.
12. It can accommodate two layers of cleaning baskets. The baskets are universal in all directions (up, down, left, right). Each 1/4 branch basket can be replaced at will. It is modularly managed. The height of the upper cleaning device can reach 270mm. When two layers are placed simultaneously, the height of the lower layer can reach 265mm. When the lower layer is cleaned separately, the vertical height of the vessels can reach 530mm.
13. Variable-frequency soft start control technology: The circulating volume of the cleaning water can be adjusted from 0 to 950 L/min, and the cleaning pressure intensity can also be adjusted to enhance the cleaning effect.
The soft start function prevents damage to the glassware caused by the sudden start and stop of the pump.
