1. Product Introduction

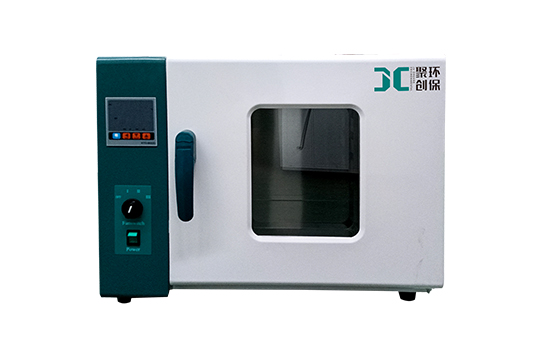

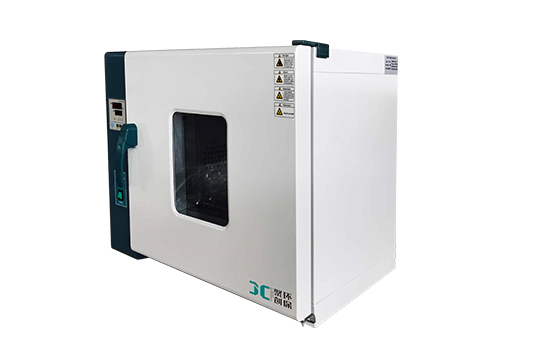

The 101‑A Series Electric Thermostatic Forced‑Air Drying Oven is widely used in industrial and mining enterprises, universities, colleges, research institutes, laboratories and other units for drying, baking and heat treatment of materials.
2. Technical Parameters
|
Item
|
101-00A / 101-00AB
|
101-0A / 101-0AB
|
101-1A / 101-1AB
|
101-2A / 101-2AB
|
101-3A / 101-3AB
|
101-4A / 101-4AB
|
|
Capacity (L)
|
20
|
45
|
72
|
125
|
210
|
245
|
|
Power Supply
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
|
Temperature Control Range
|
RT+10-300℃
|
RT+10-300℃
|
RT+10-300℃
|
RT+10-300℃
|
RT+10-300℃
|
RT+10-300℃
|
|
Temperature Resolution
|
0.1℃
|
0.1℃
|
0.1℃
|
0.1℃
|
0.1℃
|
0.1℃
|
|
Temperature Fluctuation
|
±1℃
|
±1℃
|
±1℃
|
±1℃
|
±1℃
|
±1℃
|
|
Power
|
600W
|
1000W
|
1500W
|
2000W
|
3000W
|
3000W
|
|
Working Chamber Size (mm)
|
260×280×280
|
350×350×350
|
350×450×450
|
450×550×550
|
500×600×700
|
500×700×700
|
|
Overall Dimensions (mm)
|
450×540×410
|
520×660×530
|
520×760×630
|
620×860×730
|
670×910×880
|
670×1010×880
|
|
Packing Dimensions (mm)
|
500×590×485
|
570×710×600
|
565×805×705
|
675×900×800
|
720×970×950
|
720×1050×950
|
|
N.W./G.W. (kg)
|
28/33
|
32.5/38
|
41/47
|
56.5/64
|
71/80
|
77/87
|
Note
The working chamber can be made of stainless steel or galvanized sheet.
-
A: Galvanized steel inner chamber
-
AB: Stainless steel inner chamber
Large temperature deviation will occur inside the chamber if the fan is turned off. The fan should not be turned off under normal conditions.
3. Product Features
-
Intelligent digital display PID temperature controller with functions of timer, over‑temperature alarm, temperature deviation correction and auto‑tuning.
-

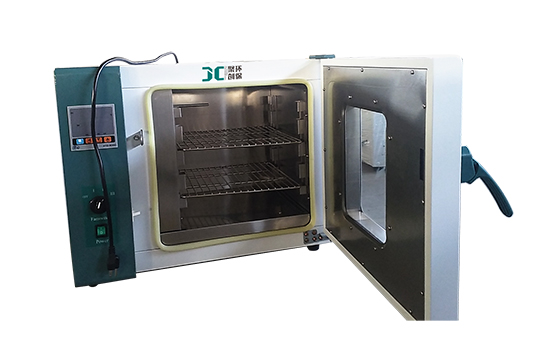

Extra‑large double‑layer tempered glass observation window for clear viewing of internal samples.
-
New type synthetic silicone sealing gasket, attractive appearance, stable at high temperature for long‑term operation and long service life.
-
Low‑noise self‑cooling fan in hot air circulation system ensures longer service life and more uniform temperature distribution.
-
Equipped with fan speed control switch for adjustable air velocity.
-
Optional functions: LCD controller, programmable controller, printer, RS485 interface, USB data storage, SMS alarm, etc.
-
Outer casing made of high‑quality cold‑rolled steel with spray coating finish.
