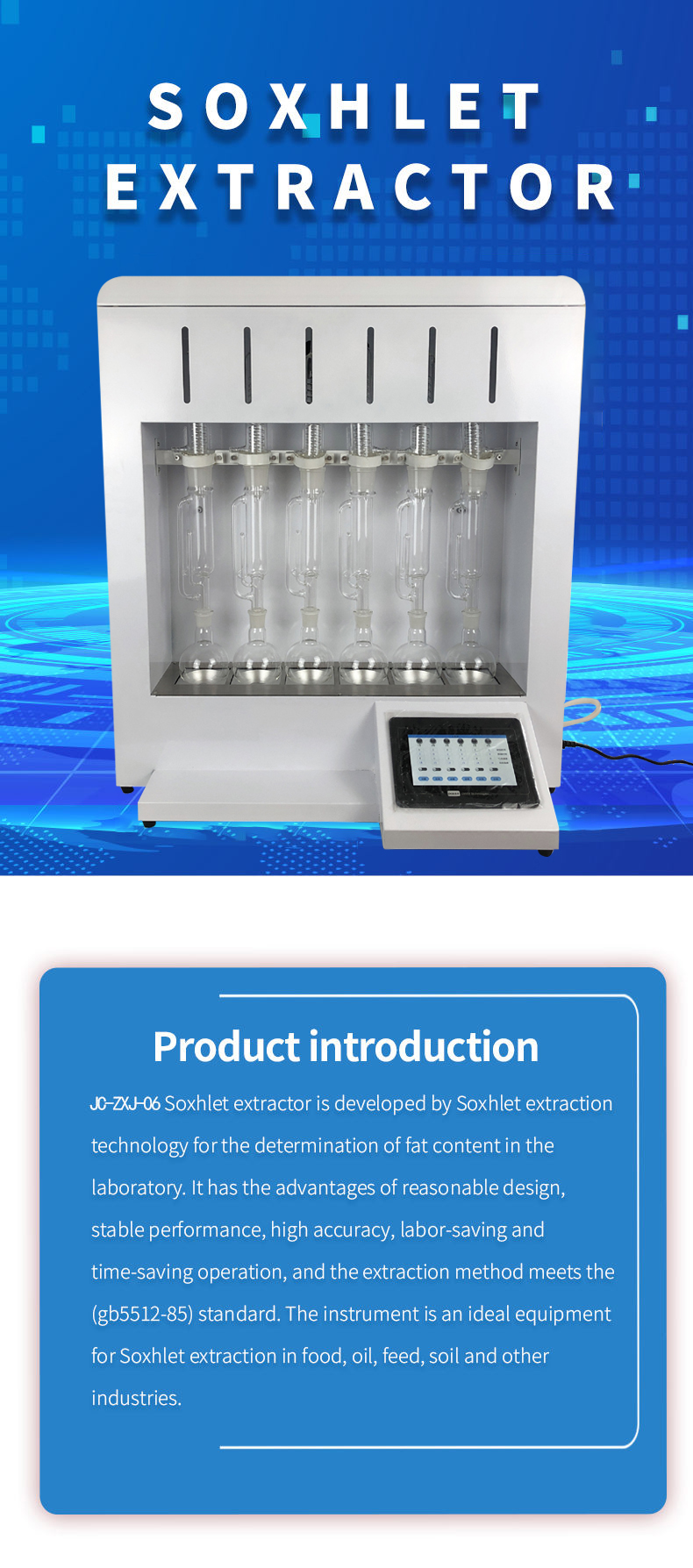

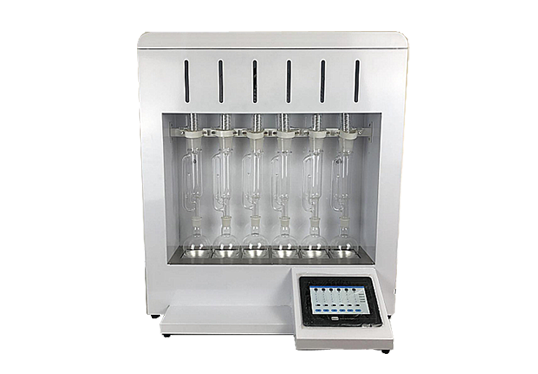

1. Product introduction

Soxhlet extractor is a device developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation. Standard, the instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

Applications: Determination of oil and fat content in aquatic product feed, determination of oil and fat content in leather, determination of succinic acid content in Pinellia chinensis, determination of polysaccharide content in Ganoderma lucidum, determination of residual oil content in chemical fibers, determination of fat content in shiitake mushrooms, etc.

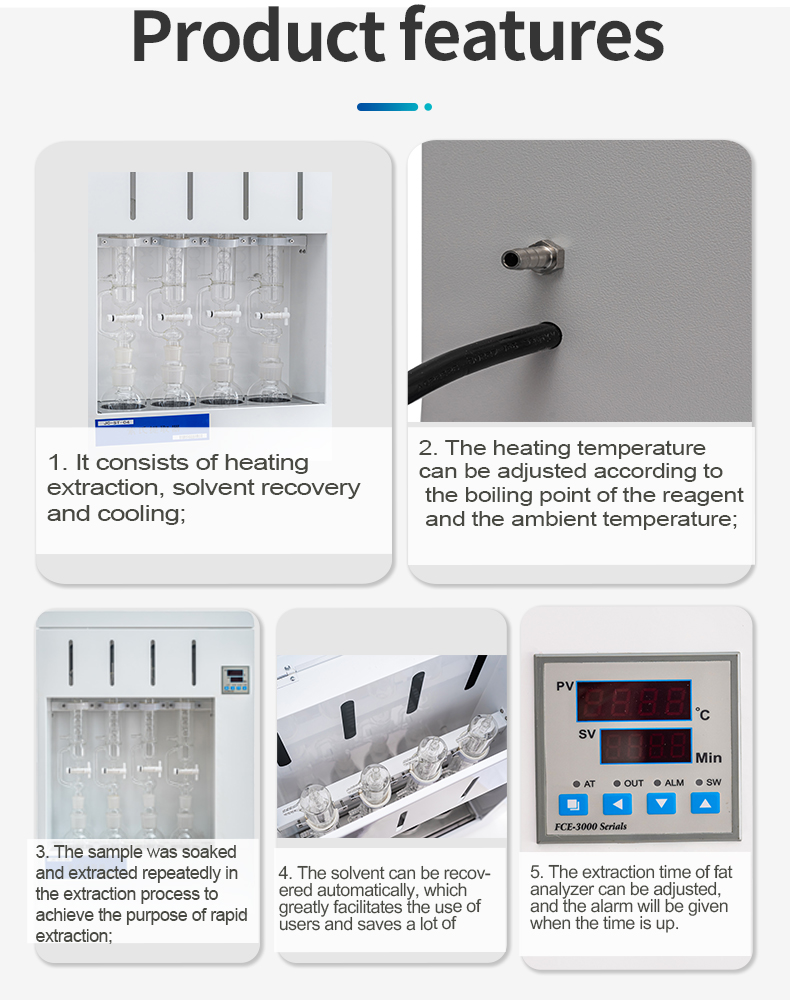

2. Main features

1. It consists of three parts: heating extraction, solvent recovery and cooling;
2. The heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature during the operation of the Soxhlet extractor;
3. The sample is repeatedly extracted during the extraction process. Soak and extract, so as to achieve the purpose of rapid extraction; 4.
The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;

3. Technical parameters

1. Number of extracted samples per batch: 6;
2. Soxhlet extractor extraction bottle volume: 250ml/piece;
3. Extraction sample volume: 0- 20 g/piece;
4. Temperature control range: room temperature + 5℃~ 180 ℃
5. Power supply voltage: 220V±10V frequency 50Hz;
6. Electric heating power: 800W;
7. Dimensions: 725*230*740mm;
8. Weight: 26kg

9. Heating method: dry
