PRODUCTS CENTER
-
Product name锛欽c-Drh-80z/160z/250z Low Temperature Biochemical Incubator (Upgrade) -
Order number锛 -
Model锛欽C-DRH-80Z/160Z/250Z -
Stock status锛欴elivery according to contract -
Logistics锛4銆乥y sea, by air, by express, etc.
- Product Introduction
-
1.Product introduction

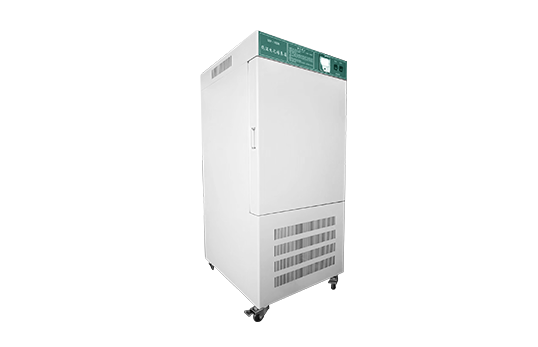

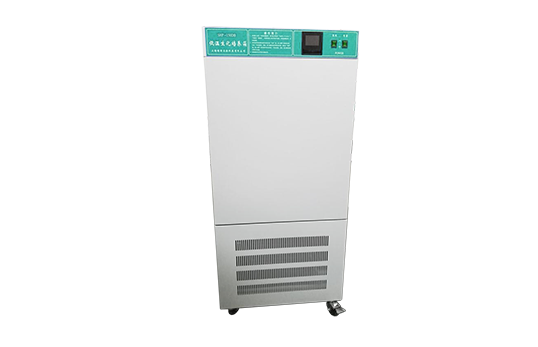

The low temperature biochemical incubator is suitable for environmental protection, agriculture, livestock, aquatic products and other research, college experiments and production departments. It is a special low-temperature equipment for environmental testing.
2. Product parameters
model
JC-DRH-80Z
JC-DRH-150Z
JC-DRH-250Z
volume
80L
150L
200L
Cooling System
Hermetic compressor
cooling method
air cooling
ambient temperature
5锝35掳
temperature range
-4 0 ~ 50 鈩
temperature resolution
0.1 鈩
temperature uniformity
卤 1 鈩
temperature fluctuation
鈮ぢ0.5鈩 can be increased to 0.1鈩 as needed
Heating rate
2 ~ 3 鈩 /min can be increased to above 10 鈩 as needed
Cooling rate
0.7锝1鈩/min can be increased to above 10鈩 as needed
temperature range
30%锝98%RH can be customized according to customer requirements
Humidity error
鈮 +2 %/-3%RH
noise
鈮65dB (national standard is 鈮75dB )
power supply
~ 220V 50Hz
Liner size
400脳400脳500
500脳400脳750
550脳500脳900
Dimensions
500脳620脳1140
600脳610脳1500
650脳710脳1650
load carrier
3
3
3
Timing range
1-9999min
Remark
Non-standard sizes can be customized according to customer technical requirements ! The above data are all no-load data!
3. Product Features
1. Microcomputer intelligent controller of low temperature biochemical incubator, with timing, over temperature, over current, power failure, alarm and safety protection functions.
2. International brand compressors and circulating fans, environmentally friendly fluorine-free refrigerants, and a reasonable evaporative condenser system can quickly cool, with high efficiency, low energy consumption and long service life.
3. The low temperature biochemical incubator adopts a double door structure, and the inner door is a tempered glass door, which has good thermal insulation performance. Mirror stainless steel liner, semi-circular arc at four corners, easy to clean inside the box, adjustable shelf.
4. The low temperature biochemical incubator is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional).
5. The low temperature biochemical incubator has an RS-485 interface, which can be connected to a printer and a computer, and can record the changing state of temperature parameters (optional).
6. A 桅25mm test hole can be set on the left side of the box, which is convenient for experimental operation and temperature measurement (optional).
